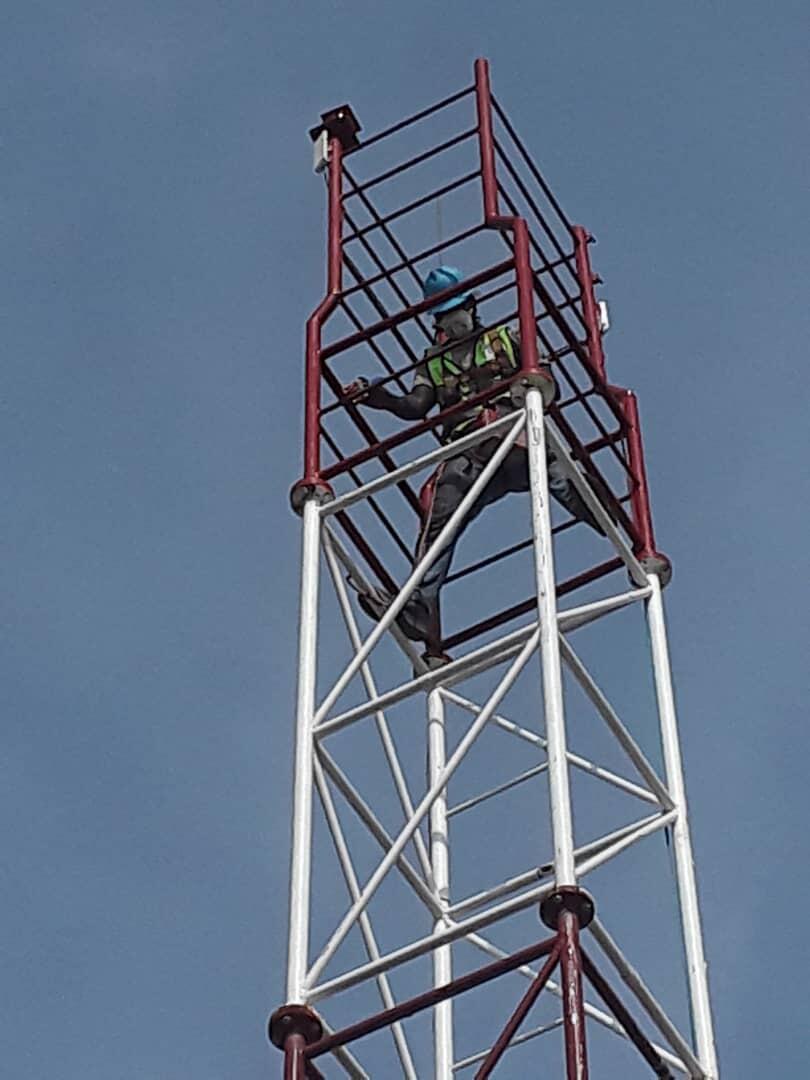

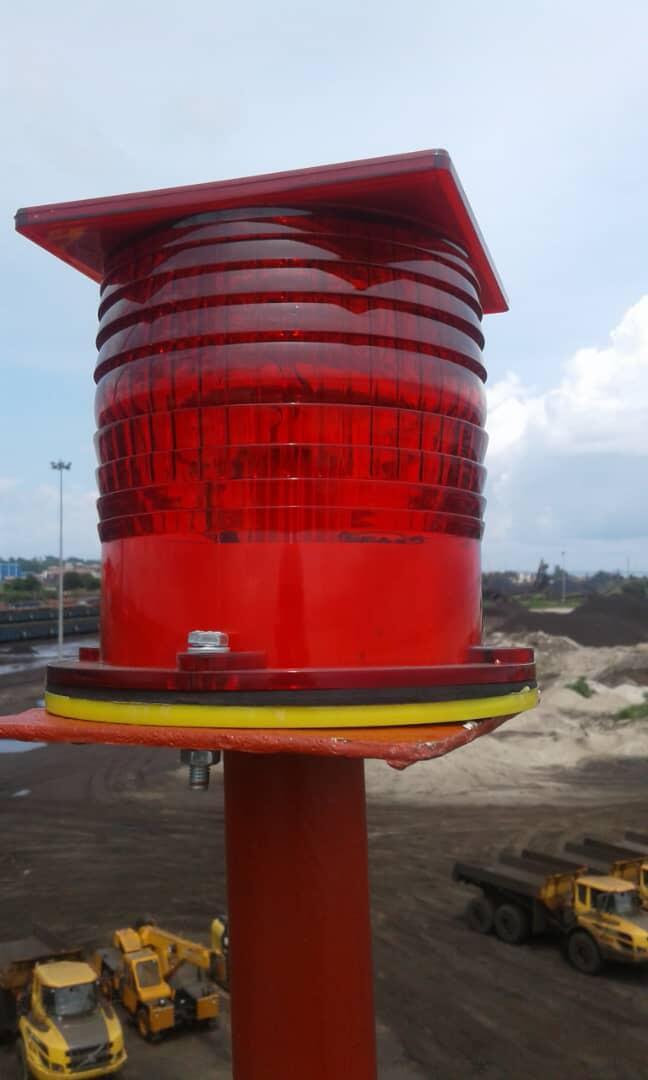

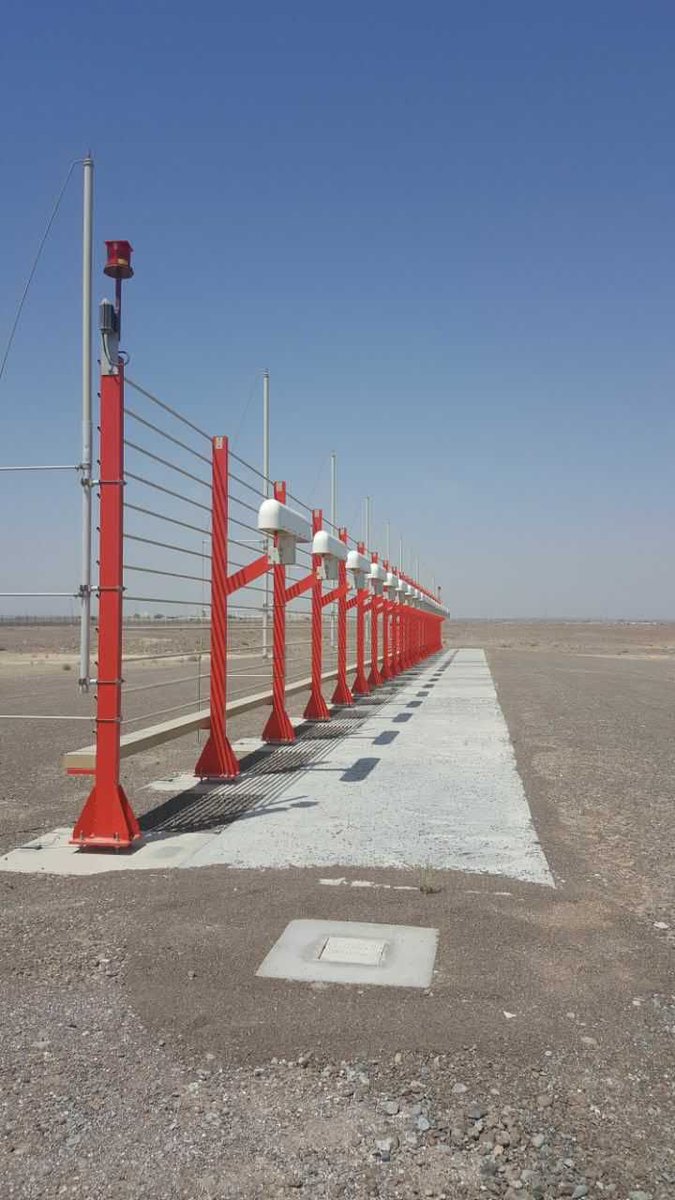

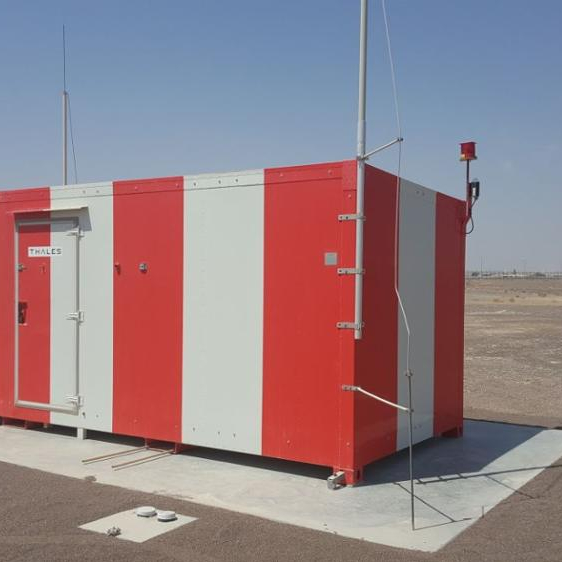

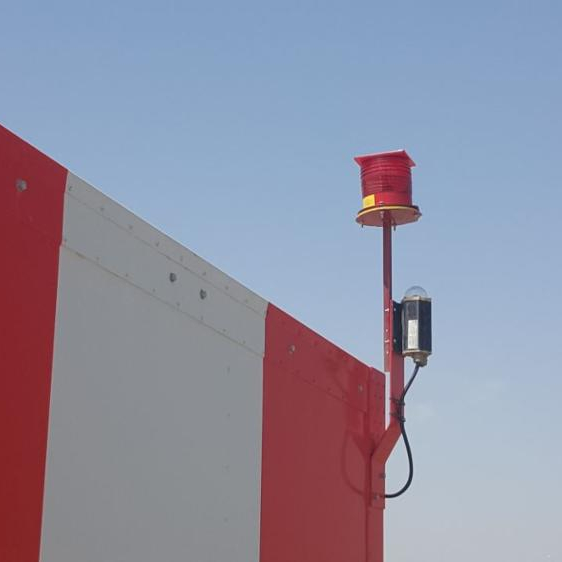

Application: Solar Powered Obstruction Lighting for Aman Airport

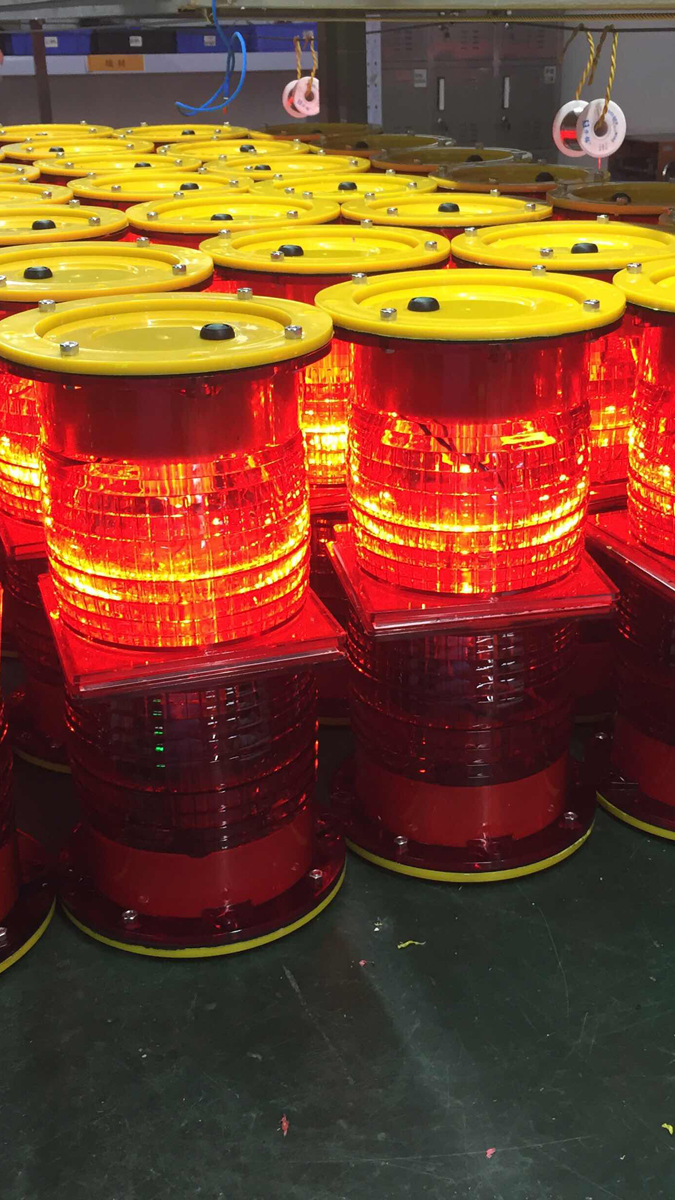

Products: CK-11L-TZ solar low intensity type a LED obstruction light
Location: Oman
 |  |
Introduction
Low Intensity Solar Obstruction Light (LIOL), multi-LED type, compliant to ICAO Annex 14 Type A, Type B, Type E and FAA L-810.
This product is the ideal solution when looking for a reliable and high-quality solar system, to be installed in areas without power supply or when a temporary obstacle light system is required.
CDT CK-11L-TZ Low Intensity Obstruction Light with Solar Panel has been designed to be an assembly as compact as possible and easy to install.
 |  |
Key Feature
Based on LED technology
Patented beacon
RED light - Steady Burning (ICAO - FAA)
RED light - Flashing (FAA)
Intensity available: >10 cd (LIOL-A); >32 cd (LIOL-B and LIOL-E)
Long life time >10 years life expectancy (for beacon)
Low consumption
Compact assembly
Degree of Protection: IP65 (for beacon)
No RF-radiations
Easy to install
Parameter
Model:CK-11L-TZ
Operating Voltage:DC6.5V(Solar Power)
Power consumption:≤3W
Light intensity:≥10cd
Emitting color:RED
Flash Frequency: Steady-on
Beam angle:360° horizontal,> 3° vertical
Overall size:?167mm×162mm
Installation size:?150mm×4-M10
Lightning protection level:5KA
Operating temperature:-40℃～55℃
Net weight:1.2KG
Optical Sensitivity:100Lux
Wind load:80m/sec.
