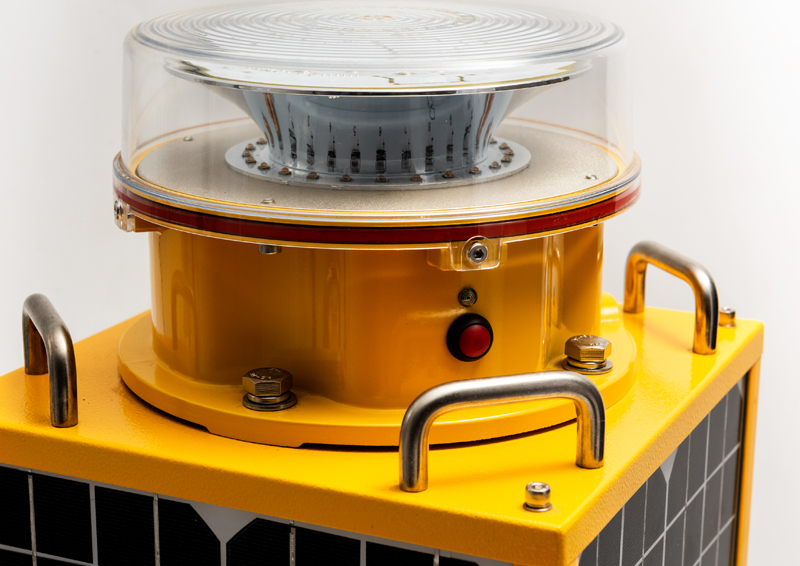

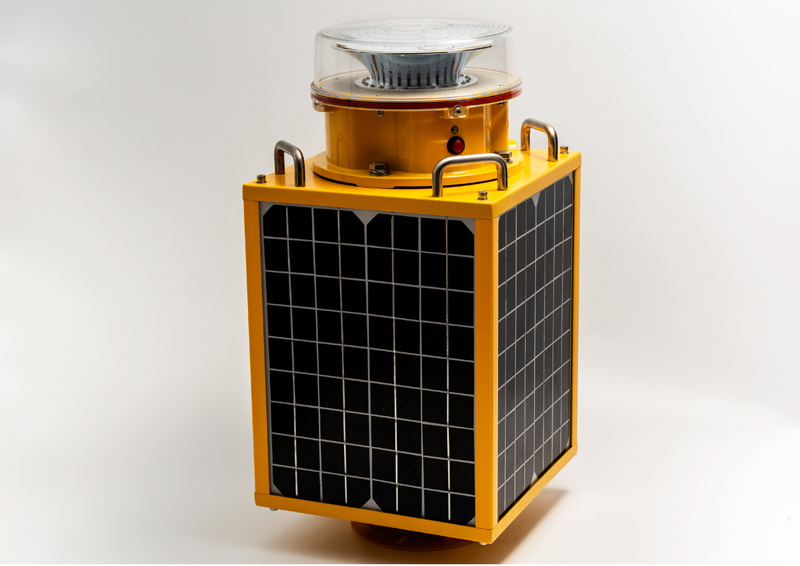

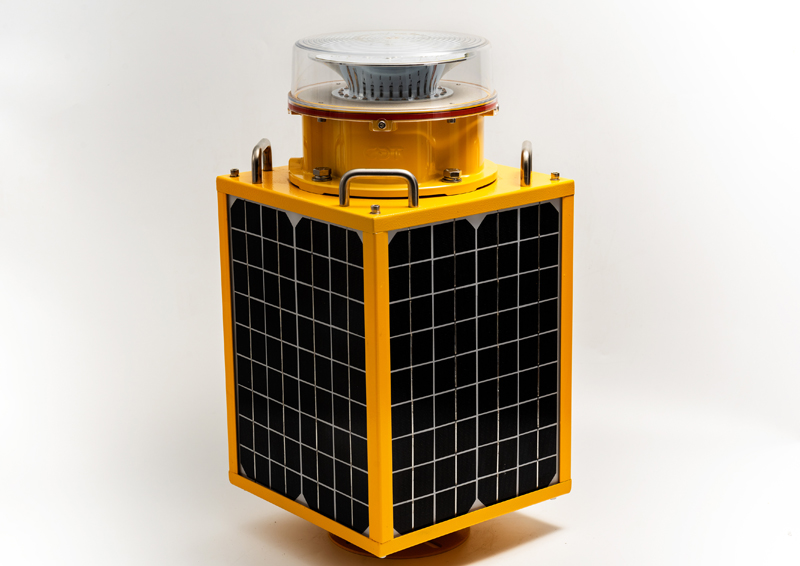

Solar power Red Strobe 2000cd aviation obstruction light led for Tower Crane, Telecom Tower, Power Tower,High Building, Bridge, Chimney etc
Application
Widely used in various fields of the Air Force, civilian airports and obstacle-free airspace, helipads, high structures, telecommunication towers, heliport, electrical transmission lines or towers, chimneys, ports, wind turbines, bridge and city high- rise buildings where there are more visible to passing aircraft. Usually used above 45m or below 150m buildings, could use alone, also could use with Low-intensity OBL type B together.
Compliance
● FAA L864
● Internation Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume I, Eighth Edition, dated July 2018
Key Feature
● Lampshade of light adopts PC with anti-UV which is high-efficiency light transmission up to 90%, quite high impact resistance and fits the bad environment very well.
● The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum alloy and painted by spraying plastic. The structure is a high strength, resistant to corrosion.
● Special battery for solar energy, free maintenance, and high reliability, lifetime more than 3 years.
● Based on the single-chip computer micropower control, could control the charge and discharge precisely.
● Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%), lifetime more than 20 years.
● Using Fresnel lens optical design, range further.
● Further use reflector optical design, visual distance, the angle more accurately, thoroughly eliminate the light pollution.

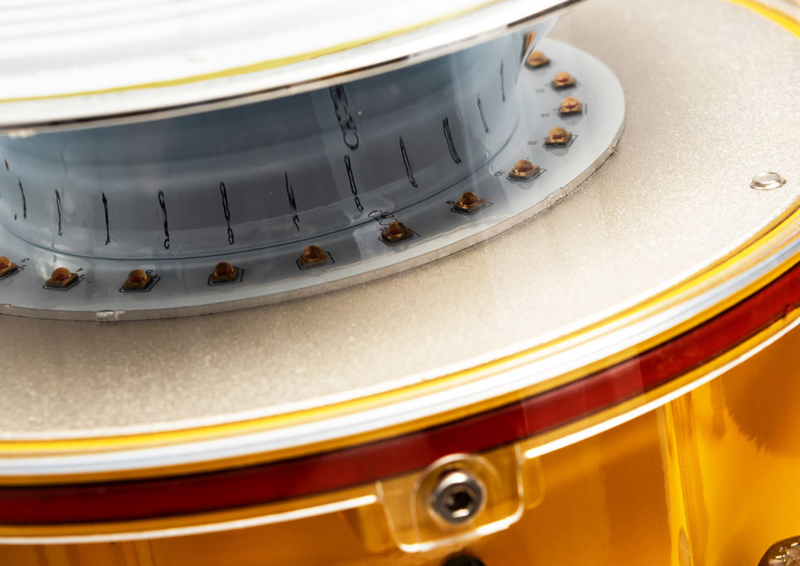

● Light source adopts LED with a long lifespan of up to 100,000hrs, lower power consumption, and high efficiency.
● Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
● The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable for a harsh environment.
● Integral structure, the protection level of IP65.
● Synchronizing GPS function is available.
Main Parameter
| Lamp Parts | Battery | ||
| Input Power | DC12V | Battery Name | Lead-Acid Battery |
| Power Consumption | ≤8W | Working Voltage | DC12V |
| Flashing Frequency | 20FPM,40FPM | Capacity(25°C) 10HR(10.8V) | 24Ah |
| Light Intensity | ≥2000cd | Internal Resistance (25°C) | 7.0mΩ |
| Light Source | Red LED | Floating charge voltage(25℃) | 13.60 to 13.80V -18mV/℃ |
| Life Span | ≥100,000hours | Charging Voltage(25℃) | 14.50 to 14.90V -30mV/℃ |
| Lighting Emitting | Red | Maximum Current | 13.75A |
| Beam Angle | 360° horizontal; ≥3°vertical | Short-circuit current | 550A (5 sec.) |
| Method of synchronization | GPS | Life Span | 12 years |
| IP Rate | IP65 | Working Environment Temperature | -20℃┉+70℃ |
| Overall Size | 255*255*515mm | Battery's Size | 165*126*174mm |
| Installation Size | Φ105mm-4*M10 | Battery Net Weight | 7.5kg |
| Solar Power Specification | |||
| Solar Panel Type | Moni-crystalline Silicon | Solar Panel Size | 320*230*30mm |
| Voltage | 18V | Power Consumption | 48W |
| Working Voltage | 18.3V | Working Current | 3A |
| Short-Circuit Current | 3.24A | Dielectric Strength | 1000V |
| Neight Weight | 16.1kg | ||
| Operating Humidity | ≤95% | ||
| Wind Load | 240Km/h | ||
Optional
● Optional Infra-red (IR)
● Optional GPS synchronization
● Optional AC power supply
● Optional Solar Powered
● Optional Dual Type, 1 duty + 1 standby
