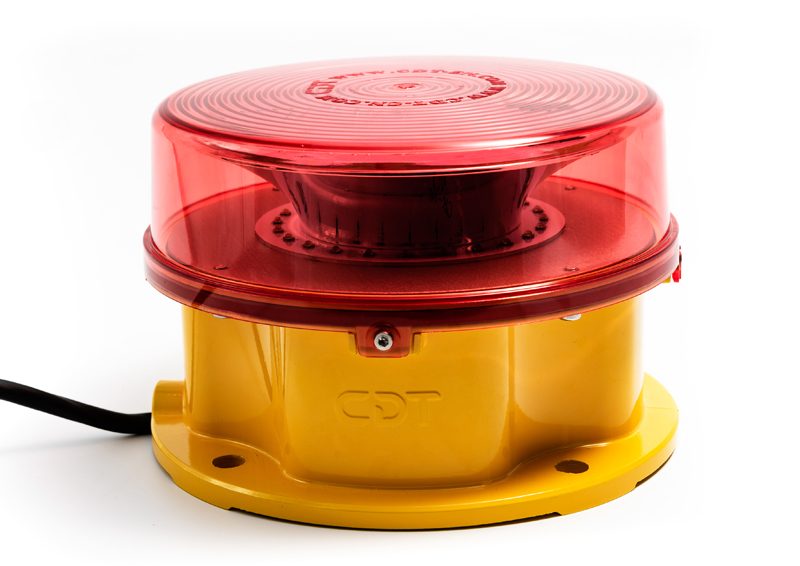

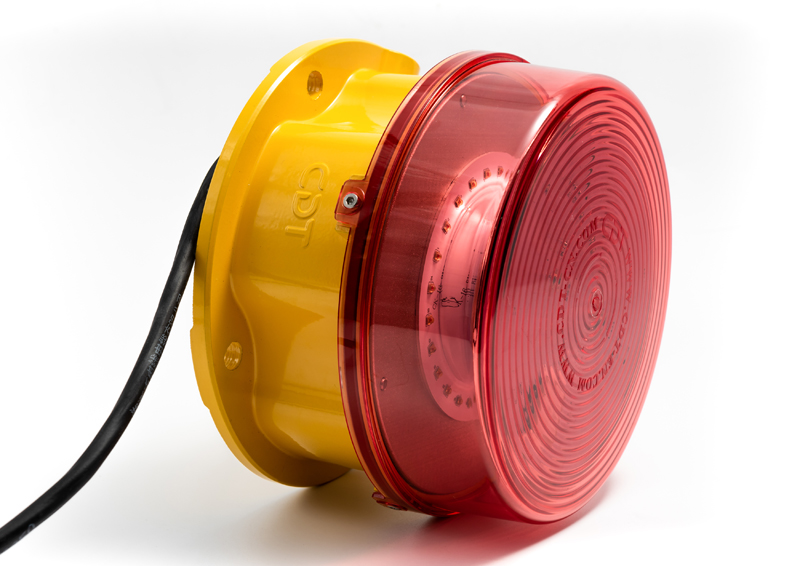

Medium intensity red obstruction light for night time marking of structures that present a hazard to aviation: tall buildings, chimneys, cranes, towers. Red Flashing.
Medium intensity red obstruction light for night time marking of structures that present a hazard to aviation: tall buildings, chimneys, cranes, towers. Red Flashing.
COMPLIANCE
ICAO ANNEX 14, Volume I, Chap. 6 Visual aids for denoting obstacles. Type B, Medium-Intensity obstacle light.
FAA AC 150/5345-43 Specification for obstruction lighting equipment. Type L-864, Medium-Intensity obstacle light.
APPLICATION
cranes and high-rise buildings
chimneys
electricity pylons
masts & tower obstacles(telecommunication, GSM, radio & TV)
wind turbines/wind farm
oil platforms
SPEC
| Product Name | Medium Intensity Red Obstruction Light – ICAO Type B |
| Model No | CM-13 |
| Light Type | ICAO Medium-Intensity Type B, FAA L-864 |
| Typical use | Night time |
| Light Source | LED |
| Type of beacon | Flashing |
| Color | Red |
| Input Voltage | 110-240 VAC, 12-48 VDC |
| Power consumption | 8W |
| Light Intensity | 2000 cd |
| Flashing rate | 20-40 fpm (flash per minute) |
| Overall size | 210mm x 140mm |

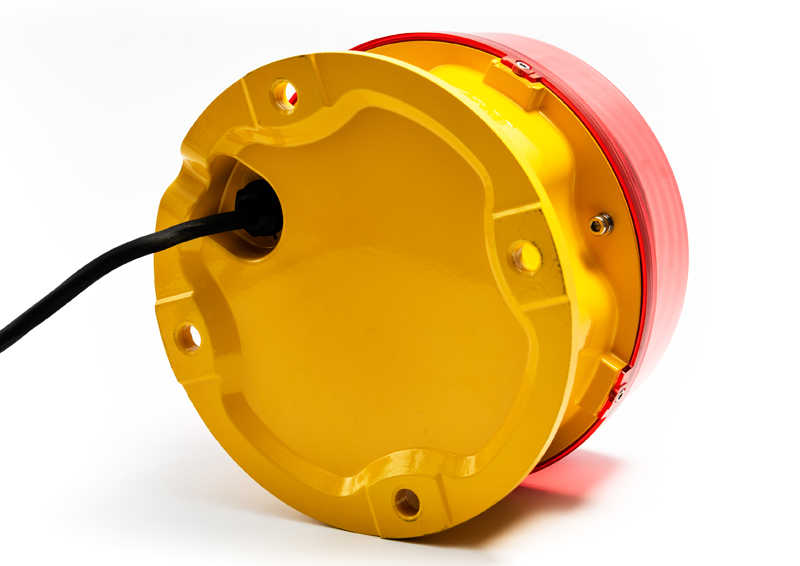

| Installation size | 126mm×4-M10 |
| Net Weight | 2.1 Kg |
KEY FEATURES

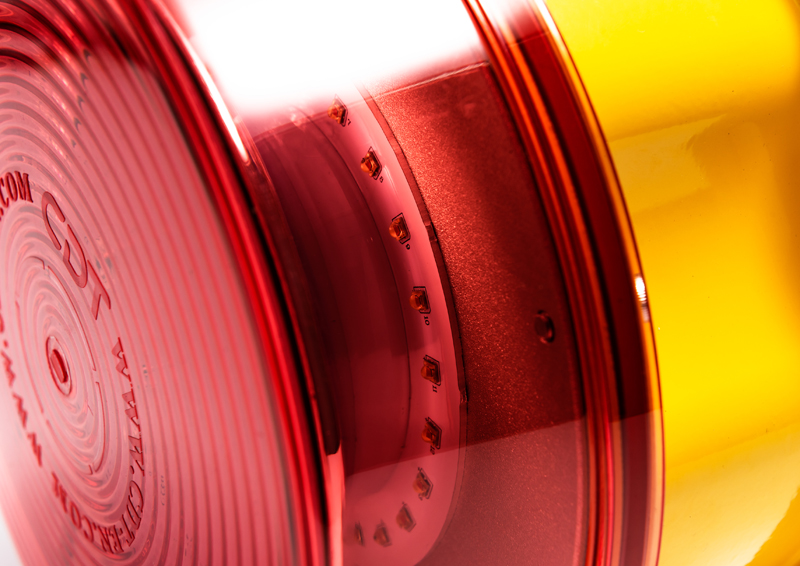

Based on LED technology
RED light - Flashing night
Intensity: 2.000 cd
Long lifetime >10 years life expectancy
Low consumption
Lightweight and compact
Degree of Protection: IP65
No RF-radiations
Easy to install
Wind resistance tested at 240km/h (150mph)
Certified by Intertek & CAAC(Civil Aviation Administration of China)
OPTIONS
Optional Infra-red (IR)
Optional GPS synchronization
Optional DC power supply
Optional Solar Powered
Optional Dual Type, 1 duty + 1 standby
