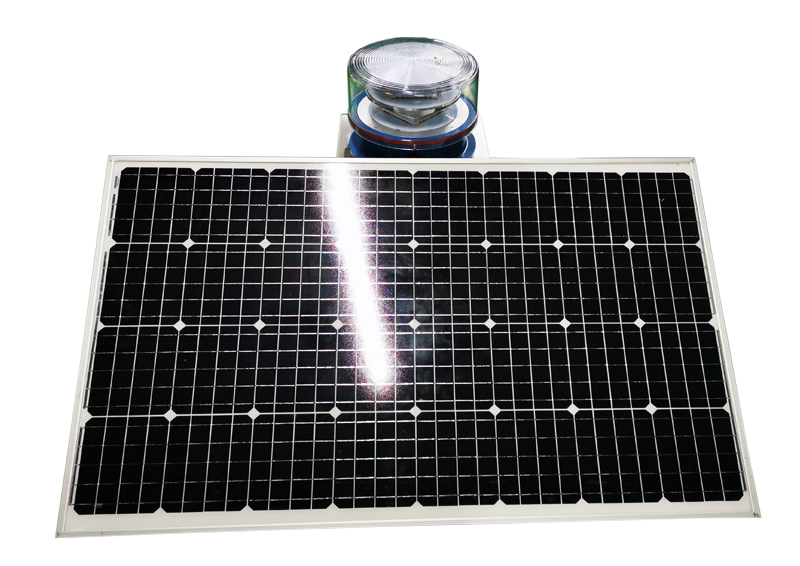

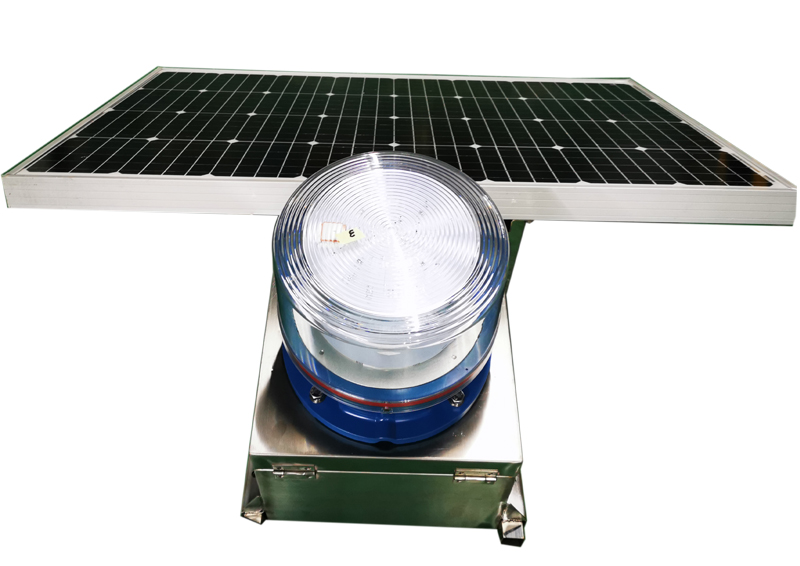

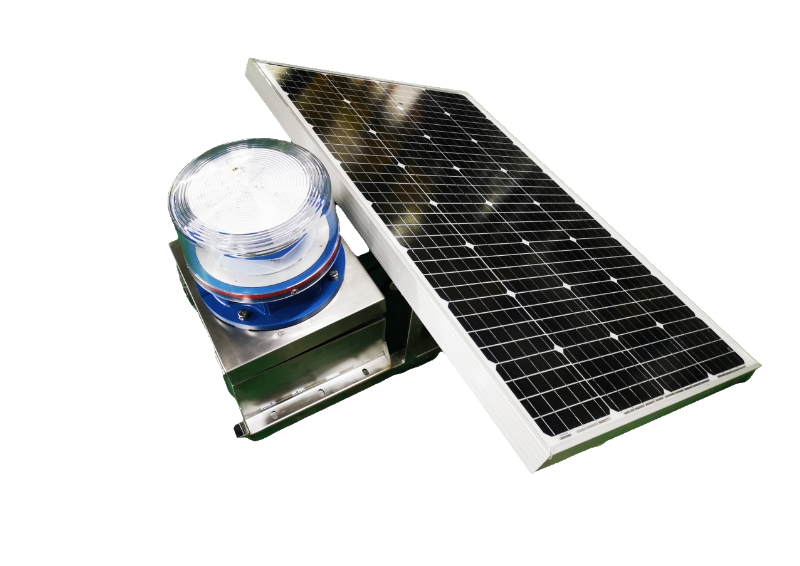

Type AB Red White solar power aviation warning lamp, 2000cd at night, 20000cd at day, 40FPM flashing, use for high voltage power Tower, Communication Tower, high-rising building, Chimney etc
Application
It is suitable for installation on fixed buildings and structures, such as power towers, communication towers, chimneys, high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles to warn aircraft.
Compliance
● FAA L865/L864
● Internation Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume I, Eighth Edition, dated July 2018
Key Feature
● Lampshade of light adopts PC with anti-UV which is high-efficiency light transmission up to 90%, quite high impact resistance and fits the bad environment very well.
● The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum alloy and painted by spraying plastic. The structure is a high strength, resistant to corrosion.
● Special battery for solar energy, free maintenance, and high reliability, lifetime more than 3 years.
● Based on the single-chip computer micropower control, could control the charge and discharge precisely.
● Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%), lifetime more than 20 years.
● Using Fresnel lens optical design, range further.
● Further use reflector optical design, visual distance, the angle more accurately, thoroughly eliminate the light pollution.
● Light source adopts LED with a long lifespan of up to 100,000hrs, lower power consumption, and high efficiency.
● Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
● The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable for a harsh environment.
● Integral structure, the protection level of IP65.
● Synchronizing GPS function is available.
Main Parameter
| Lamp Parts | Battery | ||
| Input Power | DC48V | Battery Name | Lead-Acid Battery |
| Power Consumption | ≤20W | Working Voltage | DC48V |
| Flashing Frequency | 20FPM,40FPM | Capacity(25°C) 10HR(10.8V) | 80Ah |
| Light Intensity | Red: 2000cd working at night White: 20000cd working at day | Battery Working Environment Range | -40℃ to +55℃ |
| Light Source | Red /White LED | ||
| Life Span | ≥100,000hours | Solar panel parameters (standard light intensity at 25℃) (1PCS) | |
| Lighting Emitting | Red/White | Overall Size | 1070mm×694mm×45mm |
| Beam Angle | 360° horizontal; ≥3°vertical | Power Consumption | 120w |
| Method of synchronization | GPS | Working Voltage | 65V |
| IP Rate | IP65 | Structure | Aluminum alloy frame toughened glass package |
| Overall Size | 1070mm*1000mm*490mm | Lifespan | 30 years |
Optional
● Optional Infra-red (IR)
● Optional GPS synchronization
● Optional AC power supply
● Optional Solar Powered
● Optional Dual Type, 1 duty + 1 standby
