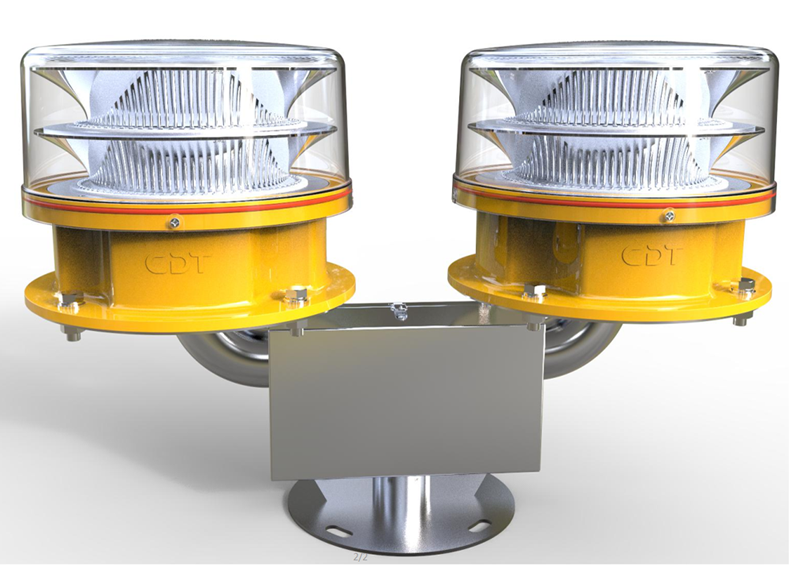

Double (Main + Stand-By) medium intensity red obstruction light for night time marking of structures that present a hazard to aviation: tall buildings, chimneys, cranes, towers. Red steady.
Double (Main + Stand-By) medium intensity red obstruction light for night time marking of structures that present a hazard to aviation: tall buildings, chimneys, cranes, towers. Red steady.
COMPLIANCE
ICAO ANNEX 14, Volume I, Chap. 6 Visual aids for denoting obstacles. Type C, Medium-Intensity obstacle light.
FAA AC 150/5345-43 Specification for obstruction lighting equipment. Type L-864, Medium-Intensity obstacle light.
APPLICATION
cranes and high-rise buildings
chimneys
electricity pylons
masts & tower obstacles(telecommunication, GSM, radio & TV)
wind turbines/wind farm
oil platforms
SPEC
| Product Name | Dual Medium Intensity White Obstruction Light – ICAO Type C, |
| Model No | CM-15-C-S |
| Light Type | ICAO Medium Intensity Type C, FAA L-864 |
| Type of Beacon | Steady (main + stand-by) |
| Typical use | Nighttime |
| Light Source | LED |
| Input Voltage | 110-240 VAC, 12-48 VDC |
| Power consumption | 15W |
| Light Intensity | 2000 cd night mode |
| Overall size | 618mm x 400mm x 268mm |
| Net Weight | 18.5 Kg |
KEY FEATURES
Based on LED technology

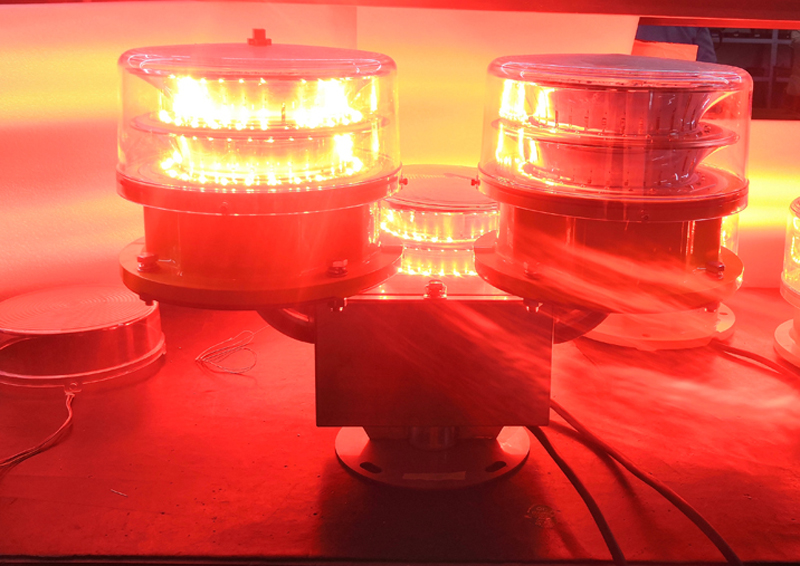

RED light - Steady Burning
Intensity: 2000 cd night-mode
Long lifetime >10 years life expectancy
Low consumption
Lightweight and compact
Degree of Protection: IP65
No RF-radiations
Easy to install
Wind resistance tested at 240km/h (150mph)
OPTIONS
Optional Infra-red (IR)
Optional GPS synchronization
Optional DC power supply
Optional Solar Powered
Optional Dual Type, 1 duty + 1 standby
