CK-15-TS Type B Double Solar Power Medium Intensity Obstruction lights

Product Description

Overview

Product Feature:Low power, easy to install, four-sided solar power.

Main Application:It is suitable for installation on fixed buildings, structures, such as electric power towers, communication towers, chimneys,

     high-rise buildings,large bridges, large port machinery, large construction machinery, wind turbines and other obstacles to warn the aircraft.

Type:Type B Medium Intensity Obstruction lights(Solar power supply,Double lamp,GPS)

● Environmental conditions:

   Working temperature: -40 ° C ┉ +55 ° C;

   Relative humidity: 0% ~ 95%;

   Wind power: no more than 240km/h;

   Rain: exposed to rain in any wind direction;

   Salt spray: exposed to salt spray;

   Irradiation: exposed to solar radiation.

● Working conditions:Input voltage: solar DC12V ± 10%

● Impact on the environment and energy: none


Main Parameter

Overall Size255mm×255mm×560mm
Light SourceLED
Light EmittingRed
Flash Frequency40FPM
Direction of illuminationHorizontal omnidirectional 360° vertical ≥3°
Light intensityAt night (<50cd/m2): 2000cd±25%
Power Source≤8W
Light lifespan≥100,000 hours
Ingress ProtectIP65
Surge Prevention10kA(Built-in)
Net Weight17.0kg
Install sizeφ105mm-4*M10
Environment HumidityAdapt to 0% to 95%
Ambient Temperature-40℃┉+55℃
Salt SpraySalt spray in the air
  Wind Load240km/h



Structural Features and Working Principle

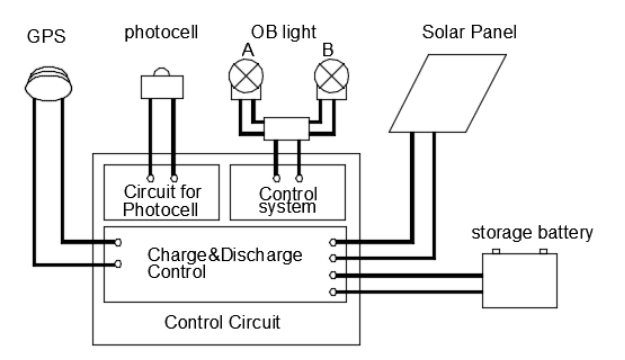

A.Working Principle

CK-15-TS Type B Double Solar Power Medium Intensity Obstruction lights

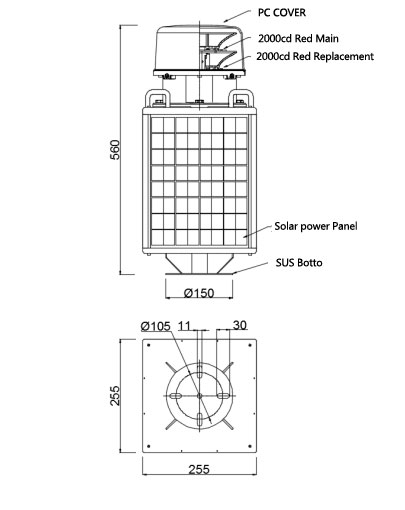

B.Structural

CK-15-TS Type B Double Solar Power Medium Intensity Obstruction lights
