low intensity obstruction lights are used all over the world to make high-rise structures more visible to passing aircrafts.
Application
Widely used in various fields of the air force,civilian airports and obstacle free airspace,helipads,iron tower,chimney,ports,wind power plants,bridge and city high-rise building where require aviation warning.
Key Feature
● Using multiple optical design of parabolic curve, point of view, the more
accurate visual range further.
● Built-in LED constant current protection circuit, stable work.
● Optical lens: PMMA materials with a transmittance of 93%.
● UV - resistant PC material lamp shade, more than 95% transparency, adapt
to different environment.
● Flammability level of UL94V0, applicable to various industrial situations

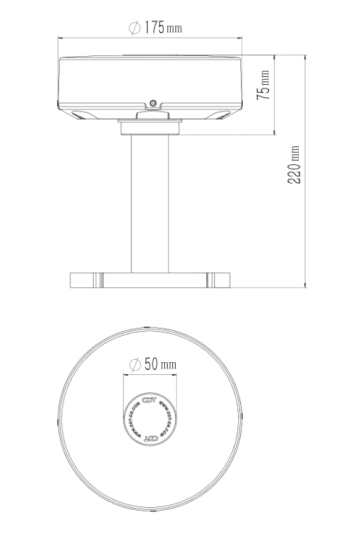

Structure chart
Parameter
| Refer | ICAO ANNEX 14 Low IntensityObstruction lights |
| Standard | FAA，ICAO Standard |
| Light Source | Bright LED |
| Light Color | Red |
| Vertical Beam Spread | ≥10° |
| Horizontal beam angle | 360° |
| Flashing Frequency | Steady Beam |
| Lifespan | ＞100000h |
| Light Intensity | ≥32.5cd |
| Operating Voltage | AC85-265V (Other available) |
| Power Consumption | ≤5W |
| Operating Temperature | -40℃～+55℃ |
| Ingress Protection | Ip65 |
| New Weight | 1.5Kg |
| Material | Lamp cover：PC. |
