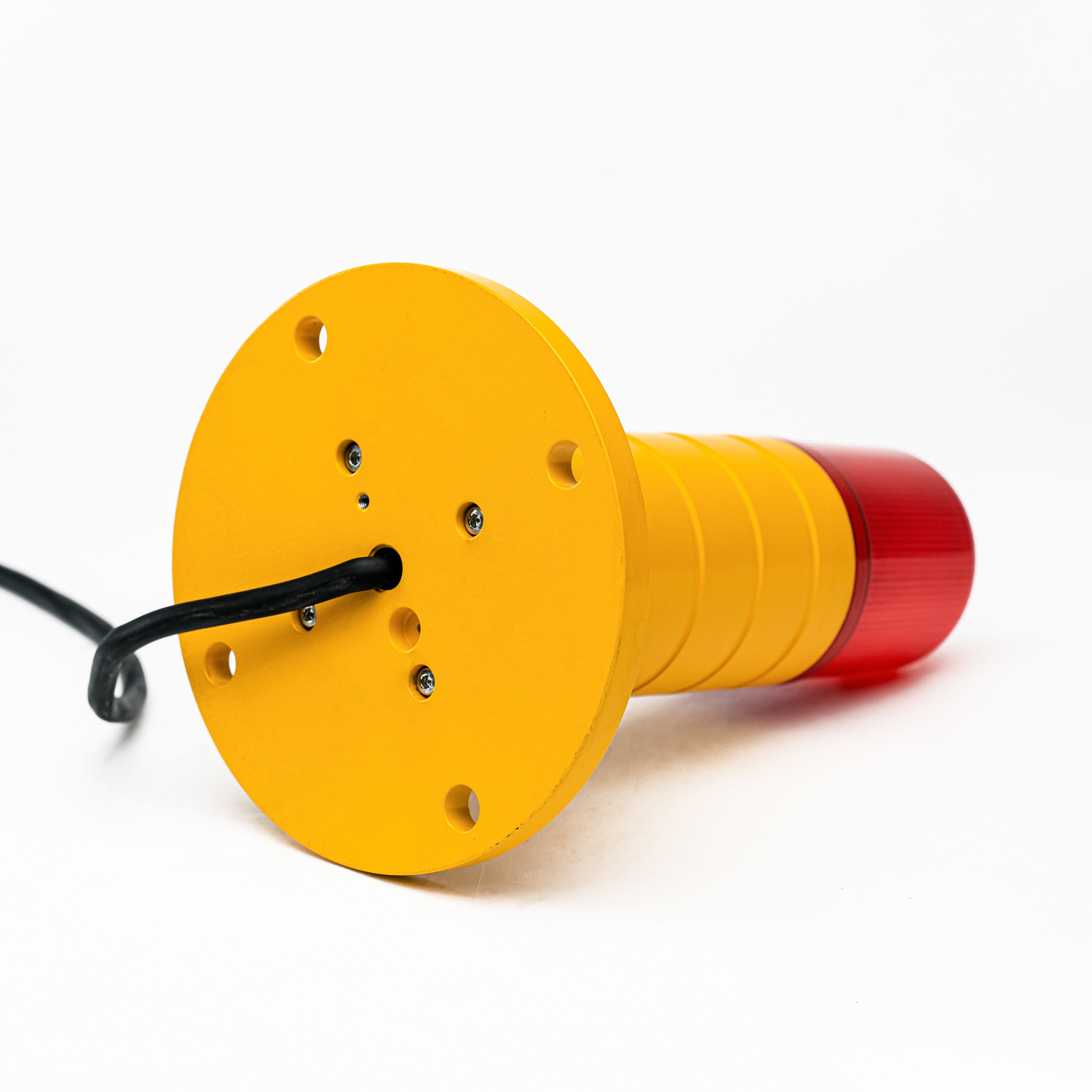

Low Intensity Aviation Obstruction Light is widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning.
Application
Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney,
ports, wind power plants, bridge and city high-rise buildings where require aviation warning.
Usually used below 45m.
Key Feature
● Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact
resistance and fits the harsh environment very well.
● House of the light is made of aluminum alloy and steel, painted by spraying plastic, the structure is high strength ,resistance to corrosion.
● Using Parabolic reflector optical design, range further.
● Light source adopts LED with long life-span ,lower power consumption and high efficiency.
● Based on the single chip computer control , automatic identification syncsignal ,do not distinguish the main light and auxiliary light ,
and also could be controlled by the controller.
● Same power supply voltage with synchronous signal , integrate in power supply cable ,eliminate the damage by error installation caused.
● Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
● The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable
for a harsh environment.
● Integral structure, protection level of IP65.
● Synchronizing function is available
Parameter
| Item | Parameter |
| Standard | FAA,ICAO |
| Model | CK-11L |
| Operating voltage | 220V (Other available) |
| Power consumption | ≤5W |
| Flashing frequency | Steady burning |
| Light Source | Red LED |
| Peak light intensity | ≥32.5cd |
| Lifespan | ＞100,000hours |
| Emitting color | Red |
| beam angle | 360° horizonta / ≥10° vertical |
| Method of synchronization | Steady burning |

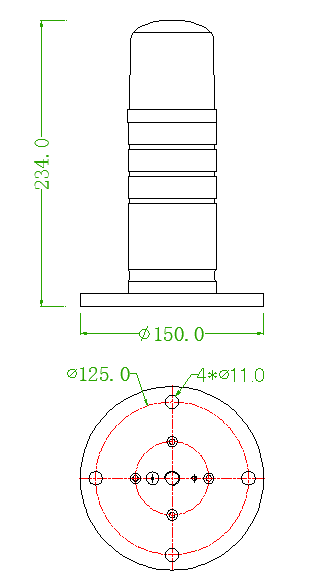

| Overall size(mm) | Ф150mm×230mm |
| Installation size(mm) | Ф125mm-4*M10 |
| Ingress Protection | Ip65 |
| Lightning protection level | 10KA |
*Key Features
The lampshade is made of UV (UV) resistant PC (polycarbonate) material with a transparency of over 95%. It has flame retardant, non-toxic, excellent electrical insulation, dimensional stability, corrosion resistance, high temperature resistance and cold resistance.
The lamp base is characterized by high strength, corrosion resistance and aging resistance.
Reflector based on the principle of reflection, the light utilization rate is over 95%, and the light exit angle can be more accurate, the visible distance is farther, and the light pollution is completely eliminated.
The light source uses a high-efficiency, low-power, long-life, high-brightness LED cold light source.
The power supply is designed for equal supply voltage synchronization signal levels and is integrated into the power cable to eliminate damage caused by incorrect installation.
Lightning protection: The internal self-contained anti-surge device makes the circuit work more reliable.
The complete set of lamps and lanterns adopts full packaging technology, which is resistant to impact, vibration and corrosion, and can be used in harsh environments for a long time. The structure is light and firm, and the installation is simple.
The lamp is horizontally mounted. Do not install the fascia diagonally, flip it, or vertically.
When installing, please ensure that the mounting plane of the lamp has sufficient strength.
Installation Way
There are four types of installation methods: side vertical installation, vertical installation, Anchorear type installation and horizontal angle iron type installation . For steel structure, curtain wall, fan, etc., the installation needs to be specific. Mounting position structure design supporting bracket.
(1) Line head distinguish
This model is equipped with a 3-core cable. The distinguish of the wire ends is as follows:
Brown Live Wire (L) Black Neutral wire (N)
Yellow/Green Earth wire (E)
(2) Single lamp wiring instructions
Red Live Wire: Terminal L
Black Neutral wire: Terminal N
Yellow/Green Earth wire: Terminal E
(3)
Multiple fixture wiring instructions
(In series parallel mode)
Red Live Wire: Terminal L
Black Neutral wire: Terminal N
Yellow/Green Earth wire: Terminal E
Every six months or one anniversary, it is necessary to clean the lampshade. The cleaning requires a soft cleaning tool. A rigid cleaning tool cannot be used to avoid the scratching lamp cover (plastic material).
(1) The lamp packaging has a single package and four packs according to actual needs. The outer package is made of 5-layer corrugated paper box with a thickness greater than 5mm, which is protected by anti-collision, shockproof and anti-stress pearl cotton.
(2) Each box contains an instruction manual, a product qualification certificate, and a factory inspection report.
(3) The lamps with packaging shall be stored in an environment where there is no change in ventilation, drying and temperature difference.
