Application
Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning.
Key Feature
● Lamp cover of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fit the bad environment very well.
● House of the light is made of aluminum alloy and painted by spraying plastics,the structure is high strength, resistance to corrosion.
● Using Fresnel lens optical design, range further.
● Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and high efficiency.
● Based on the single chip computer automatic control, and also could be controlled by controller.
● Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
● The circuit of the light has surge protection so that the light is suitable to harsh environment.
● Integral structure, protection level of IP65.
● Ignitability rate UL-94V0, fit for all kinds of industrial situation.
● Could choose controller to control the synchronous switch function.
● Main light and standby light, it will be automatic transfer

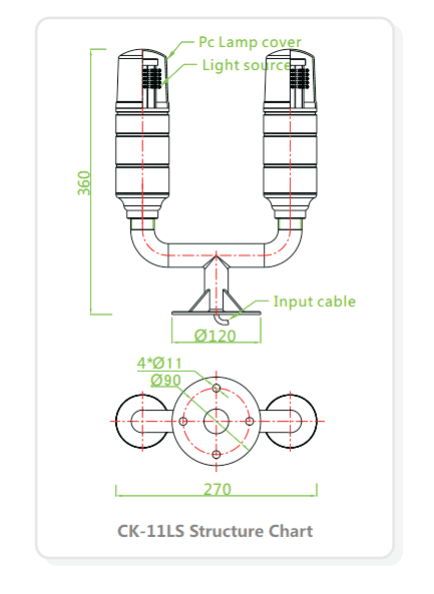

Structure chart
Parameter
| Item | Parameter |
| Model | CK-11LS |
| Operating voltage | AC110 V -220V (Other available) |
| Power consumption | ≤5W |
| Flashing frequency | Steady burning |
| Light Source | Red LED |
| Peak light intensity | ≥32.5cd |
| Lifespan | ＞100,000hours |
| Emitting color | Red |
| beam angle | 360° horizontal beam angle |
| ≥10° vertical beam spread | |
| Method of synchronization | NA (could choose the controller) |
| Overall size(mm) | 270mm×360mm |
| Installation size(mm) | Ф90mm4*M10 |
| Ingress Protection | Ip65 |
| Lightning protection level | 10KA |
| Light controlled sensitivity | 100Lux |
| Operating Temperature | -40℃～55℃ |
| New Weight | 3kg |
| Wind load | 80m/sec. |
