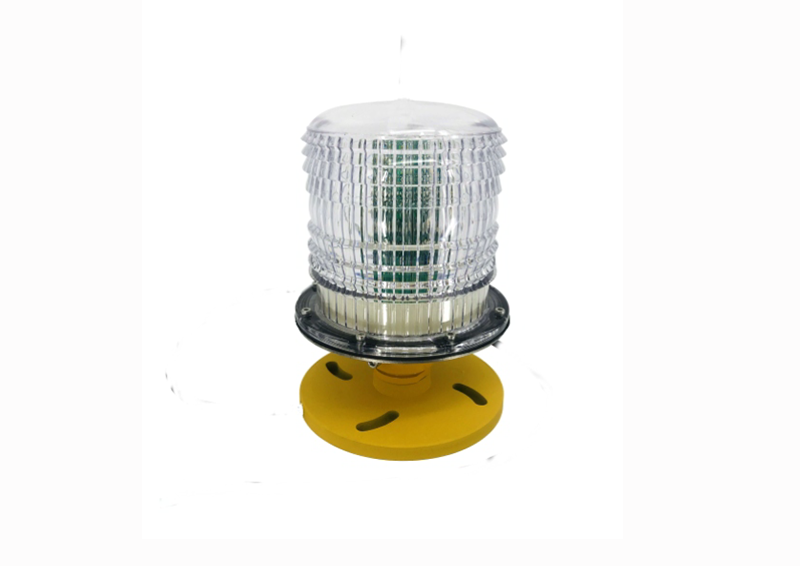

?Heliport elevated perimeter lights are vertical installation lamp. An omni-directional green light signal can be emitted during the night or during low visibility to facilitate indicating the safe landing area to the pilot. The switch is controlled by the heliport light control cabinet.
Application:
CM-HT12/CU heliport perimeter light is a constant green/yellow upright installing light. Emitting omnidirectional green light at night or in the daytime with low
visibility to indicate the perimeter of heliport take off and land area, to indicate the safe landing area for the helicopter pilot. It is controlled by a switch in the heliport control
Standard:
This product complies with U.S. Federal Aviation Administration (FAA) Standard, Appendix 14-Airport of International Civil Aviation Organization (ICAO conformity) and the specifications in Part Four of Airport Design drafted by ICAO.

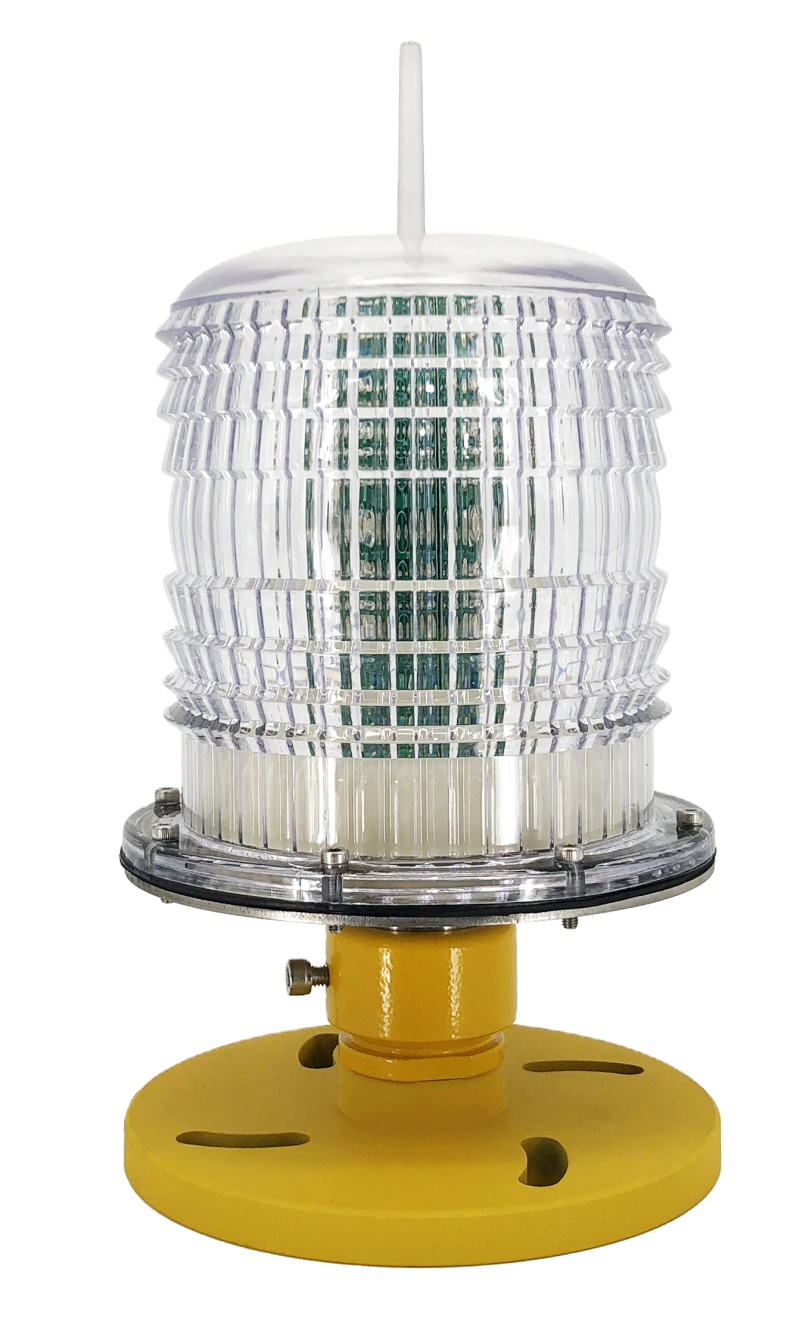

Overview:
Product features: low power consumption, easy to install, small size.
Application: Heliport elevated perimeter lights are vertical installation lamp. An omnidirectional green light signal can be emitted during the night or during low visibility to facilitate indicating the safe landing area to the pilot. The switch is controlled by the heliport light control cabinet.
Variety specifications: Heliport light
Type:Heliport Elevated Perimeter Light(Green)
Environmental conditions:
Operating temperature: -40℃~+55 ℃;
Relative humidity: 0% to 95%;
Wind power: no more than 240km/h;
Rain: exposed to rain in any wind direction;
Salt spray: exposed to salt spray;
Irradiation: exposed to solar radiation.
Working conditions: input voltage: AC220V±20%, 50HZ/60HZ.
Impact on the environment and energy: none
Features:
● The lamp cover adopts PC material with excellent impact resistance (IZOD notch impact strength: 90), thermal stability (service temperature can be 130℃), great
transparency (available with a light transmission of up to 90%), auto-UV resistance, aging resistance and flammability rating in UL94V0.
● The house of light adopts aluminum alloy, the product features are light weight, water tightness, seismic and corrosion resistance.
● Light source adopts the high brightness LED with low power consumption,high efficiency and its lifespan reaches to 100,000 hrs.
● The light with surge protection device (In 7.5KA/5 times, Imax 15KA) can be used in the harsh environment.
Specification:
| Item | Parameter |
| Model | CM-HT12/CU |
| Operating voltage | AC220V (Other available) |
| Steady Burning | YES |
| Light Intensity | 30cd |
| Light Source | Green/Blue/Yellow LED |
| Light Source Lifespan | 100,000 Hours |
| Emitting Color | Green |
| Ingress Protection | IP65 |
| Altitude | ≤2500m |
| Operating temperature | -40℃~55℃ |
| Wind Load | 240Km/h |
| Weight | 2.1kg |
| Overall Dimension (mm) | 180mmx180mmx280mm |

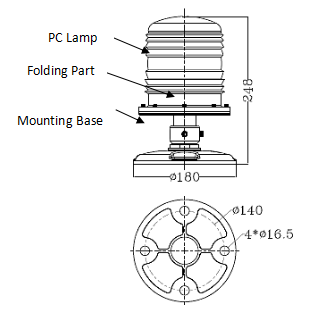

| Installation Dimension (mm) | 140mmx140mm-M16 |

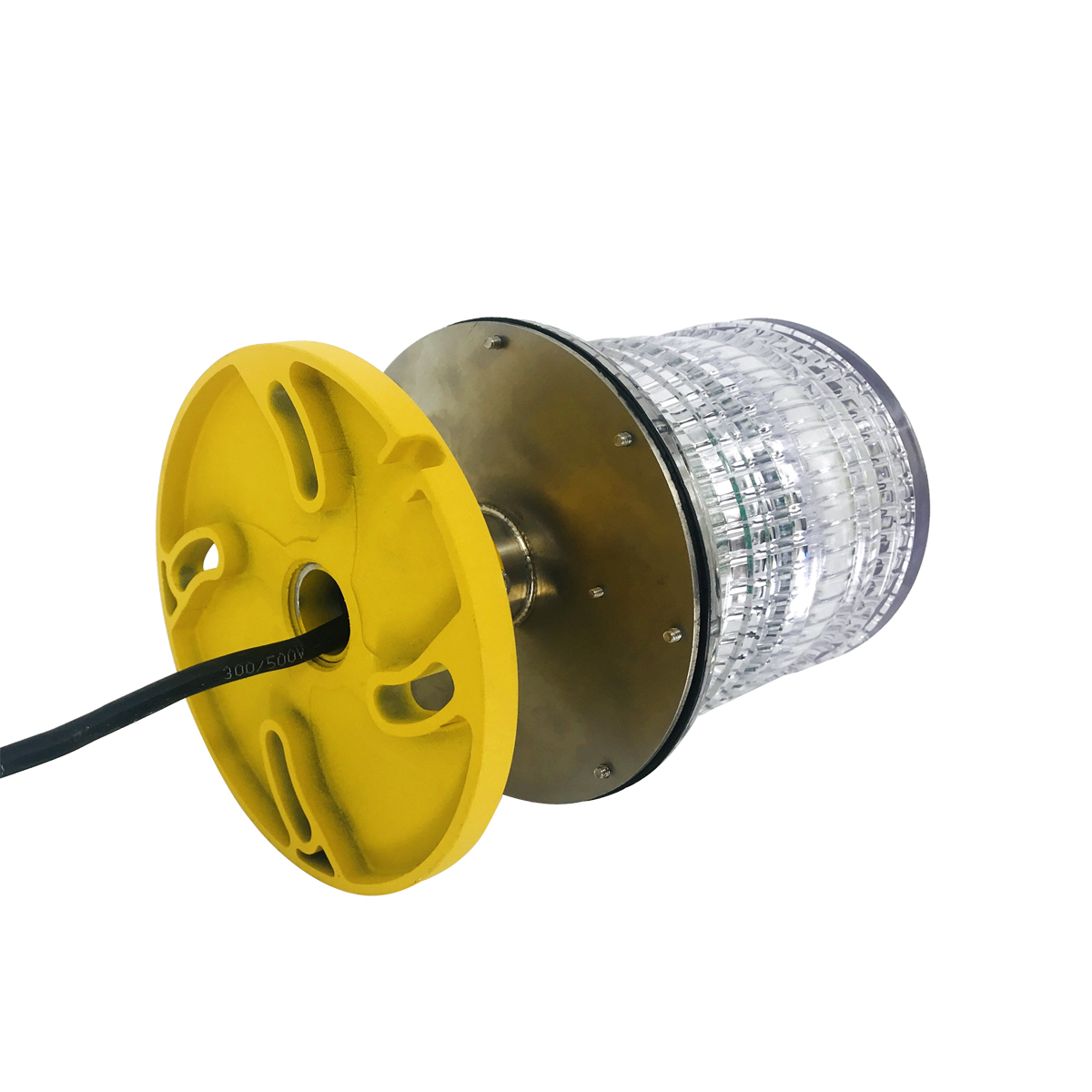

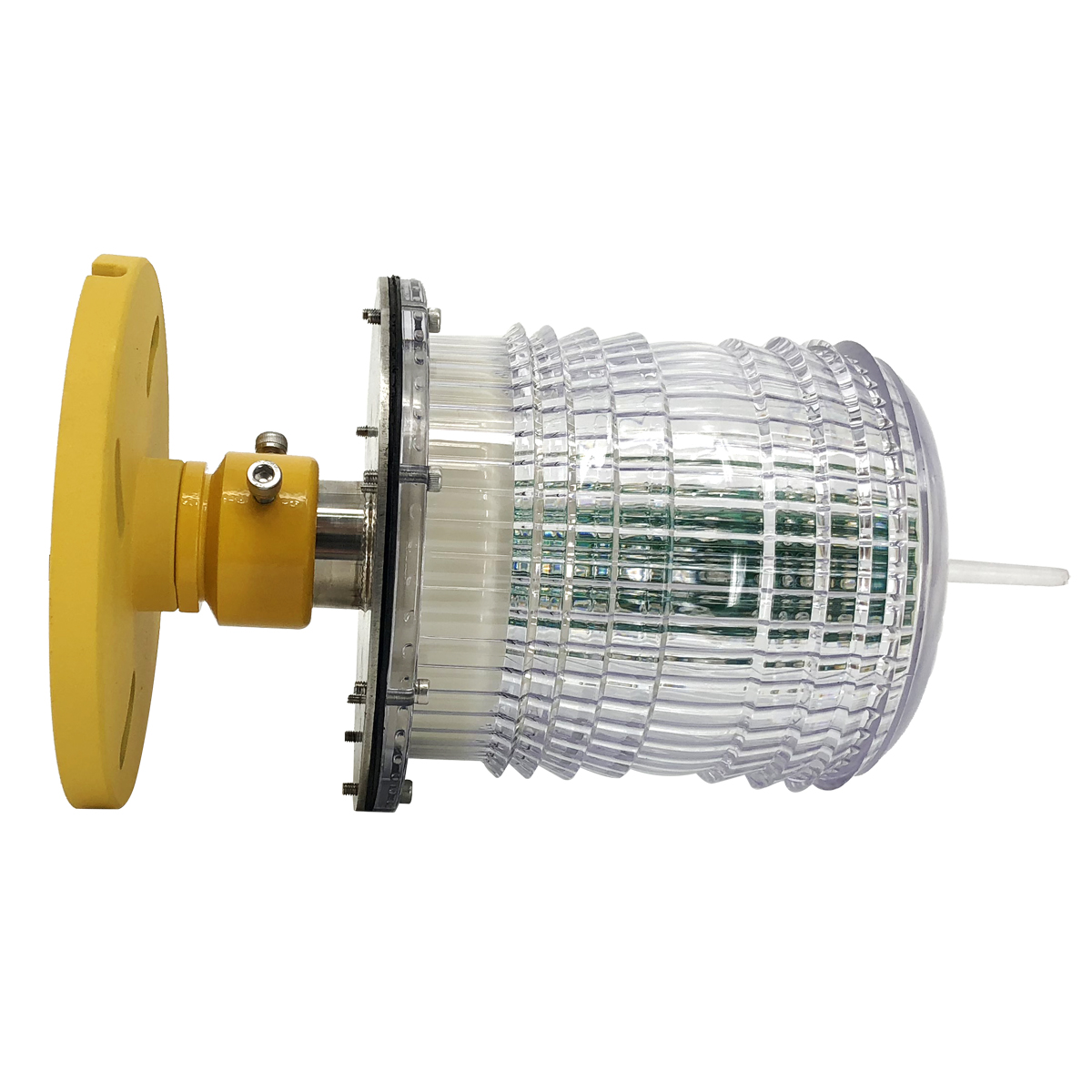

Installation:
The lamp is horizontally mounted. Do not install the fascia diagonally, flip it, or vertically.

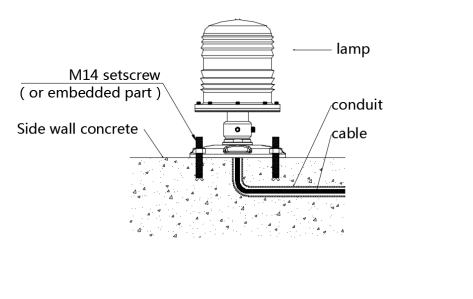

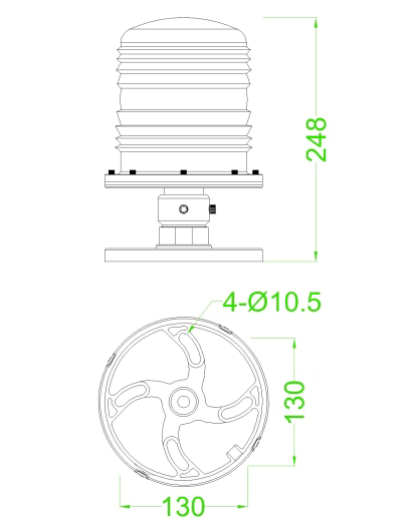

As shown in the figure below, the lamp is a horizontal installation lamp, which should be pre-embedded.See the product structure drawing for the installation dimensions.

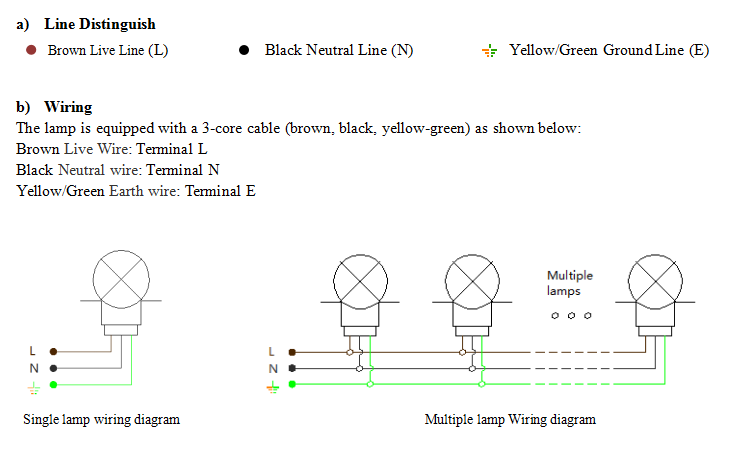

How to connection:
Every six months or one anniversary, it is necessary to clean the lampshade. The cleaning requires a soft cleaning tool. A rigid cleaning tool cannot be used to avoid the scratching lamp cover (plastic material).
Packaging/Storage:
(1) The lamp packaging has a single package and four packs according to actual needs. The outer package is made of 5-layer corrugated paper box with a thickness greater than 5mm, which is protected by anti-collision, shockproof and anti-stress pearl cotton.
(2) Each box contains an instruction manual, a product qualification certificate, and a factory inspection report.
(3) The lamps with packaging shall be stored in an environment where there is no change in ventilation, drying and temperature difference.
