Application
CM-HT12/N heliport flood light is a ground surface installation light. It's used to lighten the surface of the heliport, ensuring the heliport surface illumination not less than 10 Lux, making the heliport sign easy to see and giving the landing heliport accurate guidance. Uniform illumination of the heliport make the pilot to reduce eye glare as much as possible in short distance.
Standard
This product complies with U.S. Federal Aviation Administration (FAA) Standard, Appendix 14-Airport of International Civil Aviation Organization (ICAO conformity) and the specifications in Part Four of Airport Design drafted by ICAO.
Product Description
Product Name:Heliport LED Flood light
Model :CM-HT12/N
Working Environment: Input Power:AC90V-AC240V Frequency :50HZ/60HZ
Application:Suit for Heliport
Key Feature
● All-aluminum alloy case, light weight, high structural strength, corrosion resistance and excellent heat dissipation.
● Imported LED light source, long life, low power consumption and high brightness.
● The glazing surface is tempered glass, which has excellent impact resistance, good thermal stability (500 ° C temperature resistance), good light transmission (light transmittance up to 97%), UV resistance and aging resistance. The lamp holder is made of aluminum alloy liquid casting, and the surface is oxidized, which has the characteristics of full sealing, waterproof and corrosion resistance.
● Reflector based on the principle of reflection, the light utilization rate is over 95%, and the light exit angle can be more accurate, the visible distance is farther, and the light pollution is completely eliminated.
● The light source is a white LED, which adopts international advanced long-life, low-power, high-efficiency chip package (lifetime over 100,000 hours) and color temperature of 5000K.
● The complete set of lamps and lanterns adopts full packaging technology, which is resistant to impact, vibration and corrosion, and can be used in harsh environments for a long time. The structure is light and firm, and the installation is simple.
Structure chart
Specification
| Item | Parameter |
| Model | CM-HT12/N |
| Operating voltage | AC110V-AC240V/50,60Hz |
| Power consumption | 100W-140W |
| Luminous flux | ≥10,000LM |
| Light Source | White LED |
Light Source Lifespan Emitting Color | 100,000 Hours |
| Emitting Color | White5000K |
| Ingredd Protection | Ip65 |
| Environment humidity | 0～100% |
| Altitude | ≤4500m |
| Operating temperature | -55℃ ~55℃ |
| Wind Load | 80m/s |
| Weight | 5.6kg |
| Overall Dimension(mm) | 400mm×260mm×142mm |
Installation Way

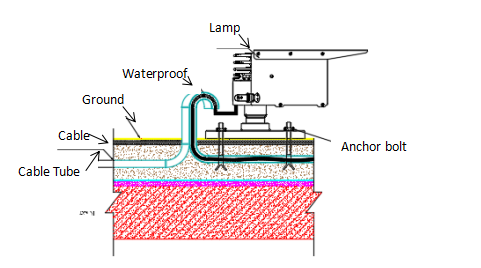

As shown in the figure below, the pipe anchor bolts should be made before installation (if the expansion bolts are not buried).
l Place the light horizontally and the anchor bolts or expansion bolts should be secure and vertical. The end of the threading pipe on the ground should be made of a circular arc waterproof structure. A waterproof junction box, tee, is embedded in the ground near the tail of the lamp.
l Line head resolution: This model has only one 3-core cable (2.5 square section), of which brown and black are power lines (AC90V-AC240V), brown is power line (L), black is power line (N), yellow-green Is the ground wire.

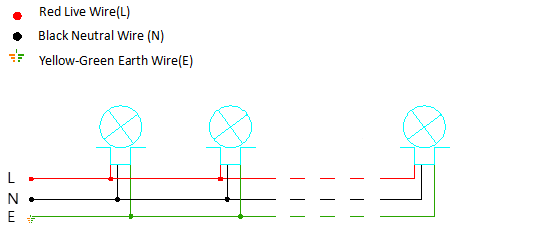

Connection Wire Way
