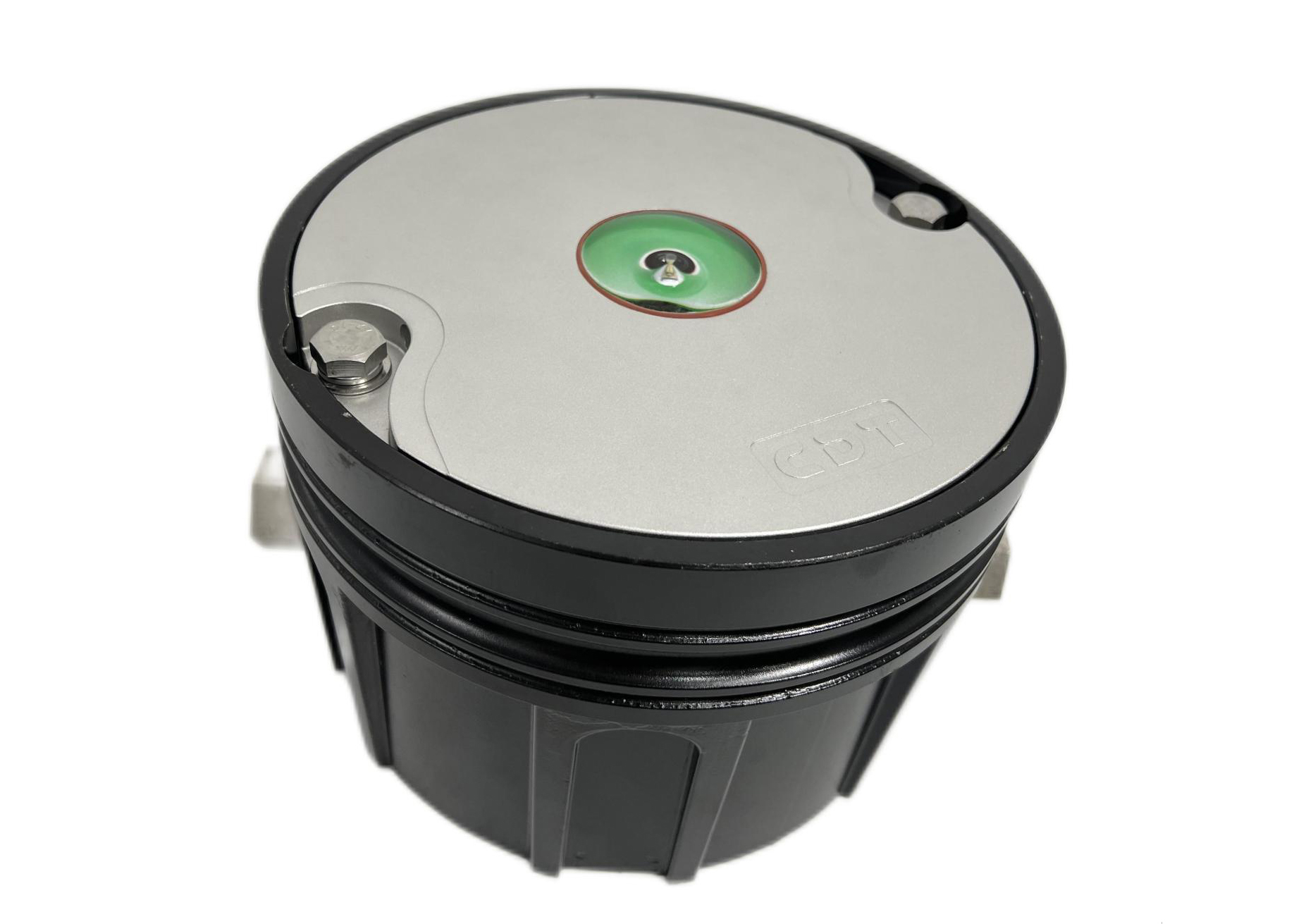

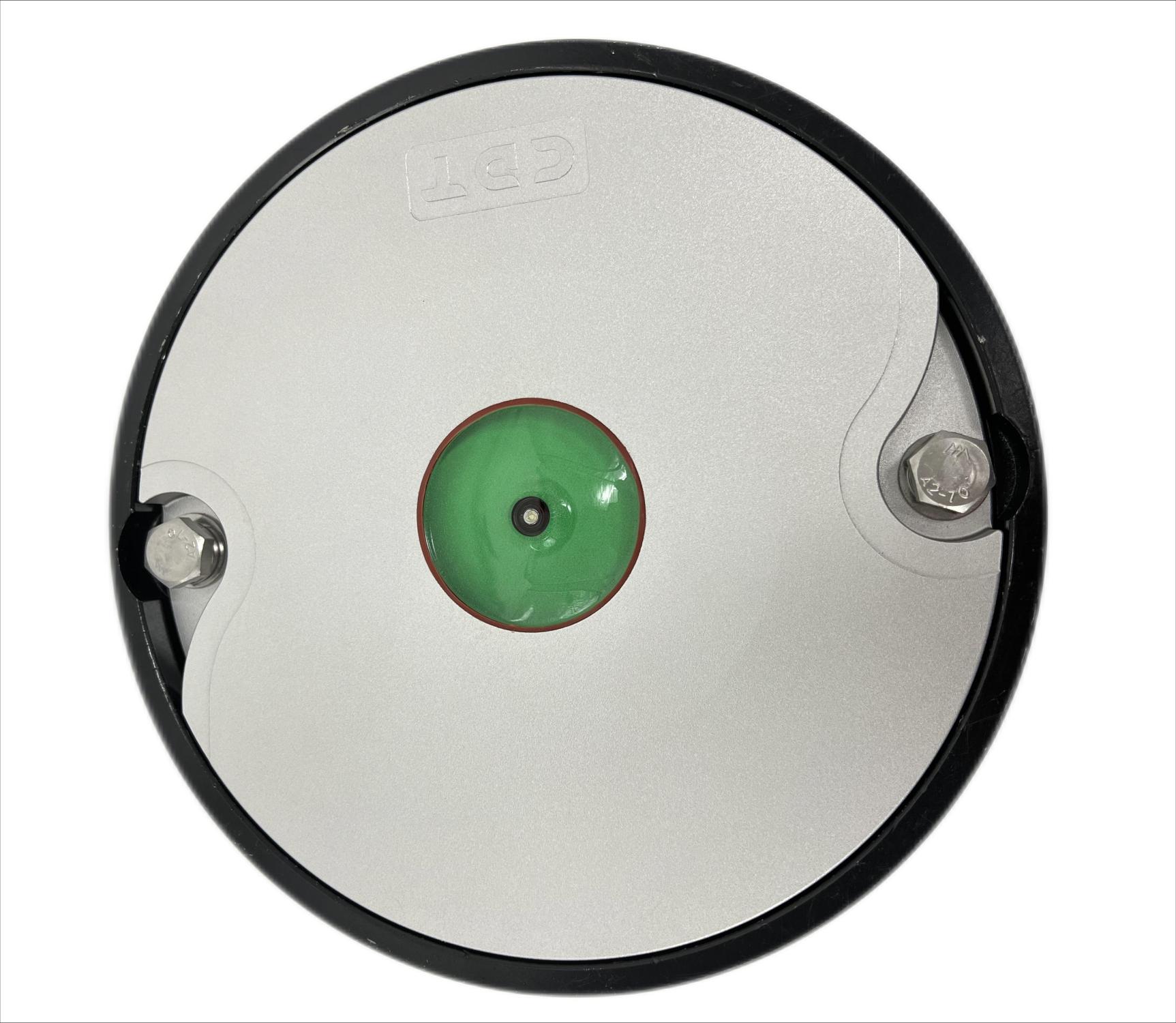

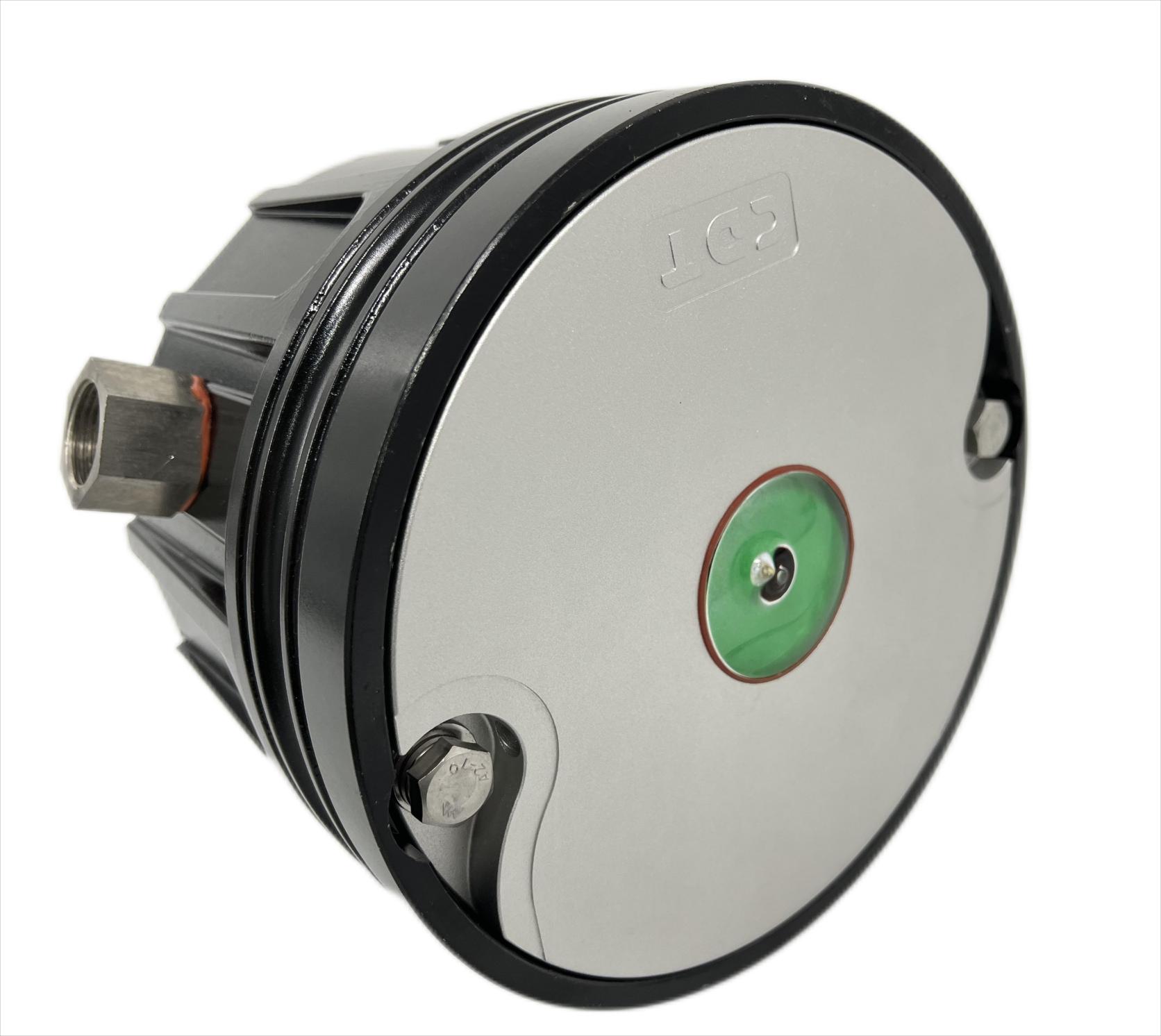

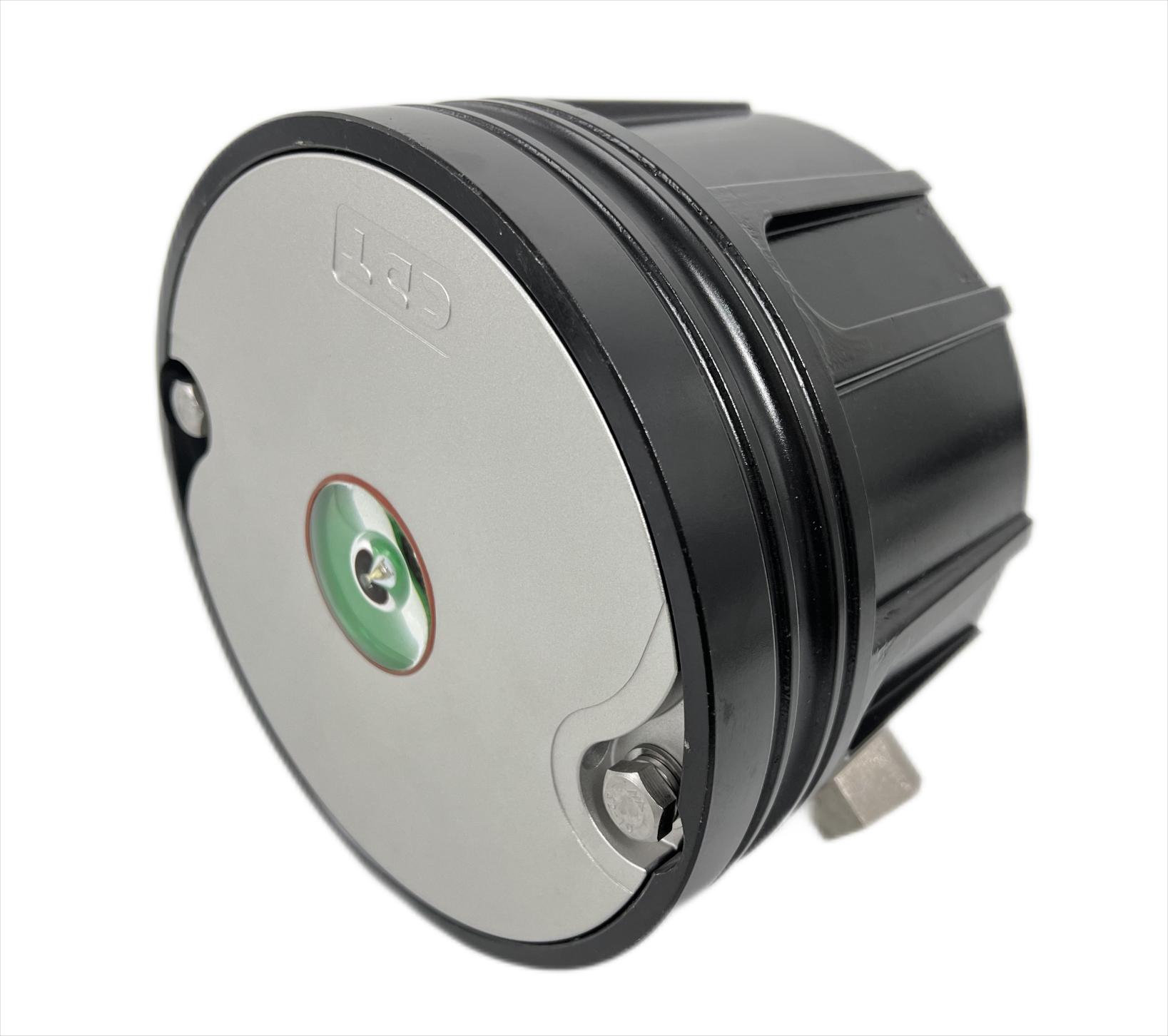

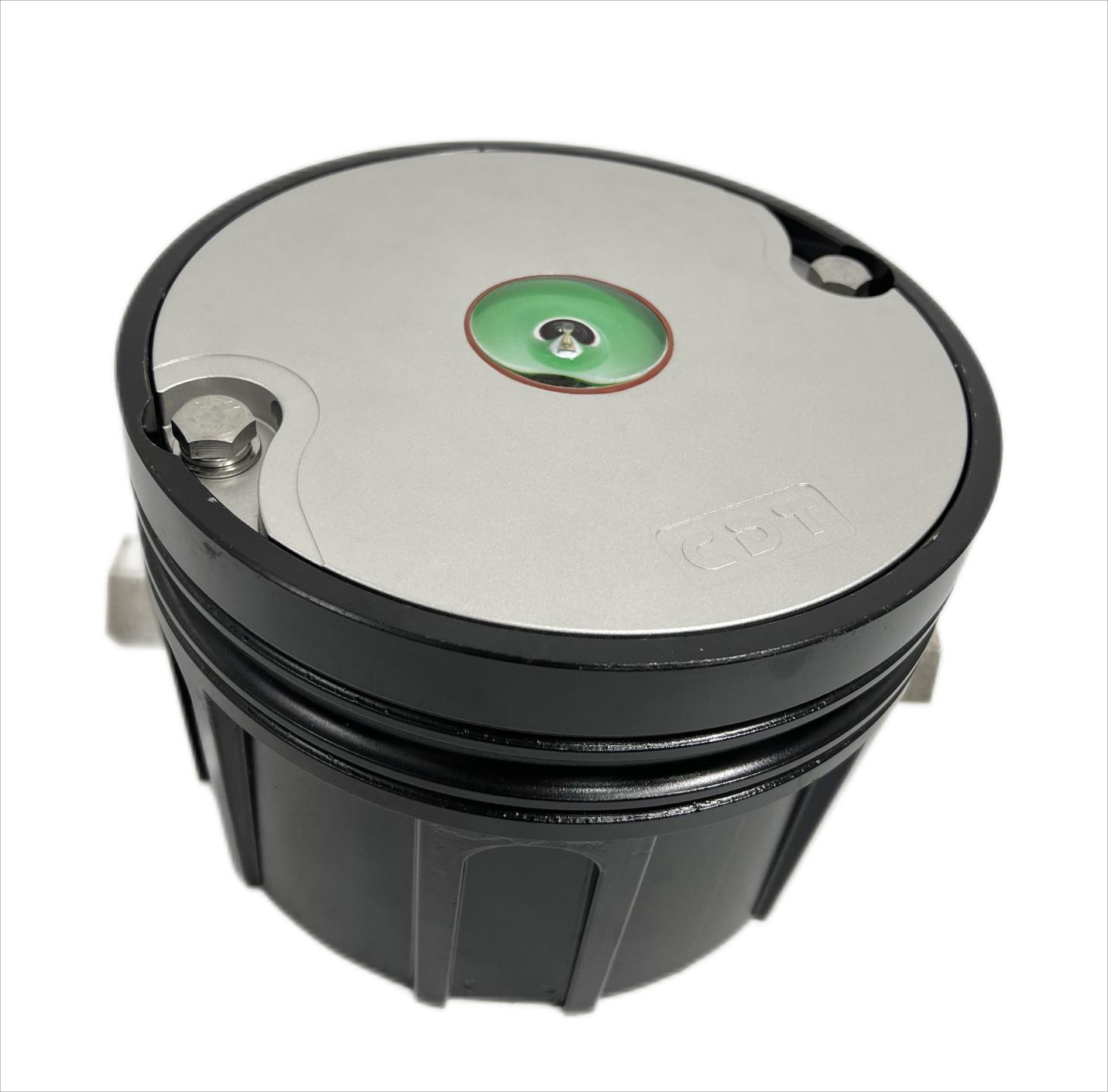

Model: CM-HT12/CQ is a kind of TLOF perimeter light widely used to the heliport area,used high brightness LED green lamp,heliport flush green led perimeter light,heliport FATO white flush omni-directional or all-around landing-point light
1. Application
The Helipad TLOF inset perimeter lights is Green/Yellow constant light.It shows omnidirectional Green/Yellow signal at night or during low visibility days.providing accurate landing point locations for helicopters.It would be controlled by heliport control cabinet.
2. Key Features
l Adopt toughened optical glass with high strength,good abrasion resistance,strong impact resistance and light transmittance of more than 95%.
l The upper cover of the light is made of high quality aluminum alloy with good mechanical properties, strong bearing capacity and impact resistance.
l The light body is made of corrosion-resistant aluminum and the surface is anodized. All fasteners are made of stainless steel, which can be used in various environments.
l The light surface is smooth and no acute angles to ensure the safety of the heliport tires.
l The light source LED adopts the imported international advanced long-life, low power consumption, and high-efficiency chip package (lifetime exceeds 100,000 hours).
l Strict LED color management to ensure the consistency of light color.
l The power factor is greater than 0.9, which can minimize the interference to the power grid.
l The power line of the light is equipped with anti-surge device (10KV / 5KA surge protection), which can be applied to harsh climate environment.
l The dust-proof and waterproof grade can reach IP68, and the power supply adopts glue sealing technology.
3. Specification
Item | Parameter |
Model | CM-HT12/CQ |
Operating voltage | AC100-240V/DC24V(Other available) |
Power Consumption | ≤15W |
Light Intensity | 30cd |
Light Source | Yellow/Green/Blue LED |
Light Lifespan | 100,000 Hours |
Emitting Color | Yellow/Green/Blue |
Ingress Protection | Ip68 |
Environment Humidity | 0-100% |
Altitude | ≤2500m |
Environment Temperature | -40℃～55℃ |
Wind Load | 240km/h |
Net Weight | 7.3kg |

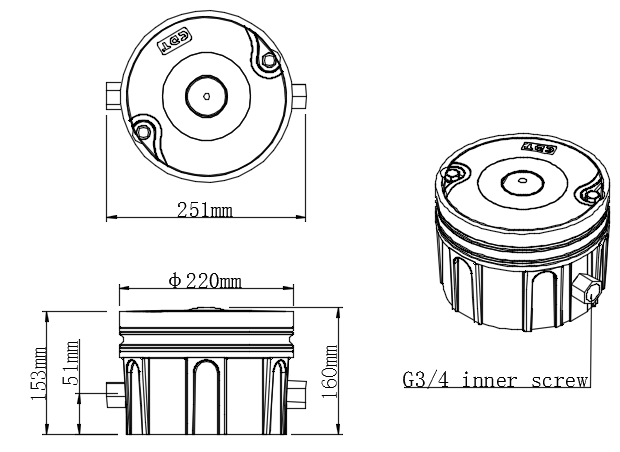

Light Barrel Size | Ф220mm*156mm(Other available) |

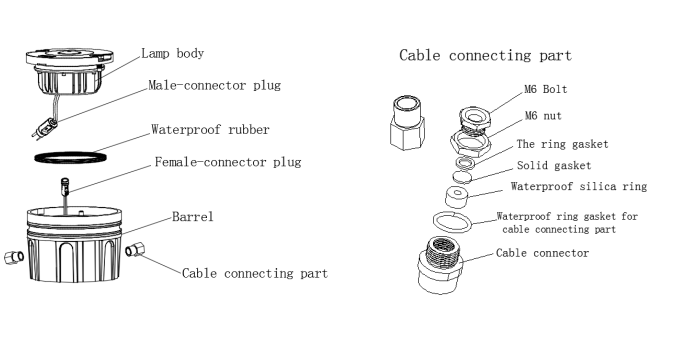

4. Structure

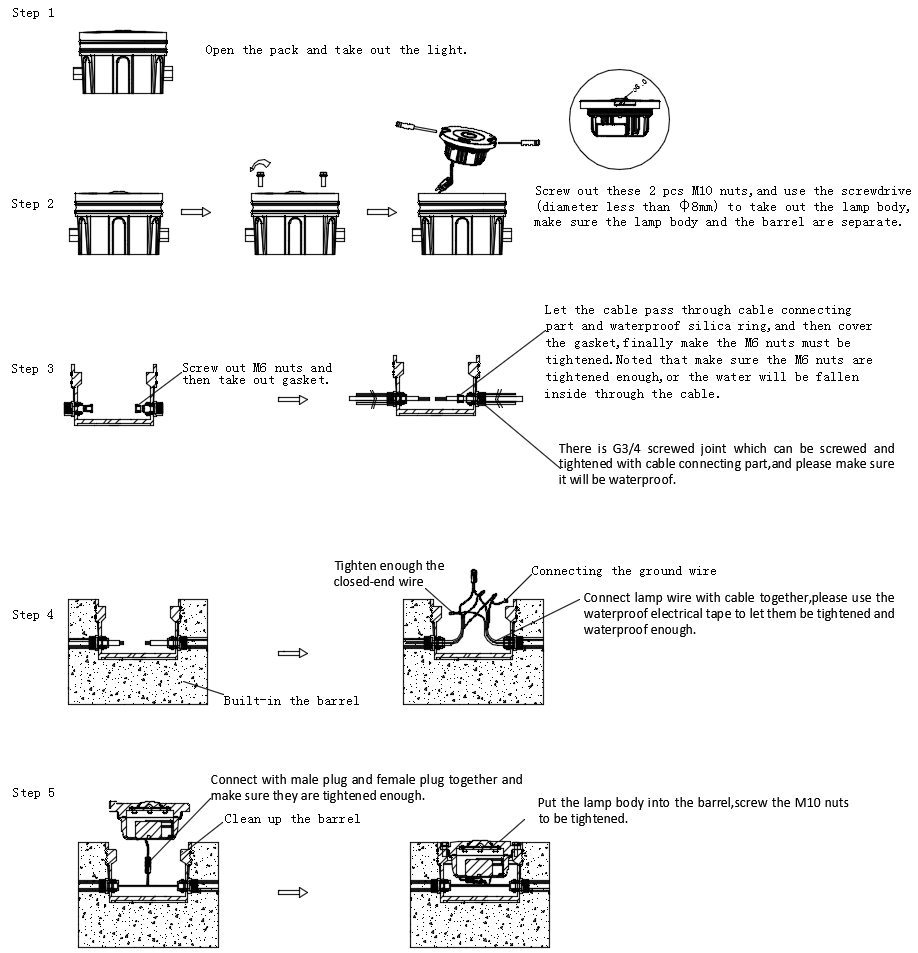

5. Installation Steps

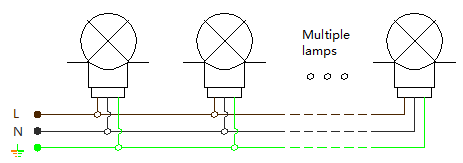

6. Wiring Diagram for multi-lights
7. Attentions
All wiring must be connected properly, otherwise the light may be damaged, please check the signs and instructions carefully.
The power source is AC90-240V.Never use other power sources,such as AC380V,otherwise the lamp will be damaged.
There is a temperature rise when this product is working, which is normal.
When the product is working,do not open any part of the light body to prevent danger occur.
This product has a sealed structure. Non-professional maintenance personnel should not disassemble it. Once found, the company will not guarantee it.
