This heliport light controller is outdoor type, and ingress protection is IP65, can be used in the outdoor directly.
Application:
CM-HT12/G is a heliport outdoor light controller, suits all kinds of heliport lights' on/off controller. It controls and shows all the heliport
navigation lights' work status. This product is outdoor type, and ingress protection is IP65, can be used in the outdoor directly.
Features:
● The house is made of steel painted by spraying plastic finish which is corrosion resistance and anti-UV.
●It has 6 circuits of output, and it can be changed according to requirement. There are Auto, Manual and Remote three modes for user's choice.
● This controller is powerful, reliable, safe, easy to use and maintain, convenient.
| Item | Parameter |
|---|---|
| Model | CM-HT12/G |
| Operating voltage | AC220V(Other available) |
| Power consumption | ≤30W |
| Load capacity | ≤4KW |
| Ingress Protection | IP65 |
| Environment humidity | 0~95% |
| Altitude | ≤2500m |
| Operating temperature | -40℃~55℃ |
| Weight | 40kg |
| Overall Dimension (mm) | 900mmx600mmx260mm |
| Installation Dimension (mm) | 858mmx520mm-4xM12 |

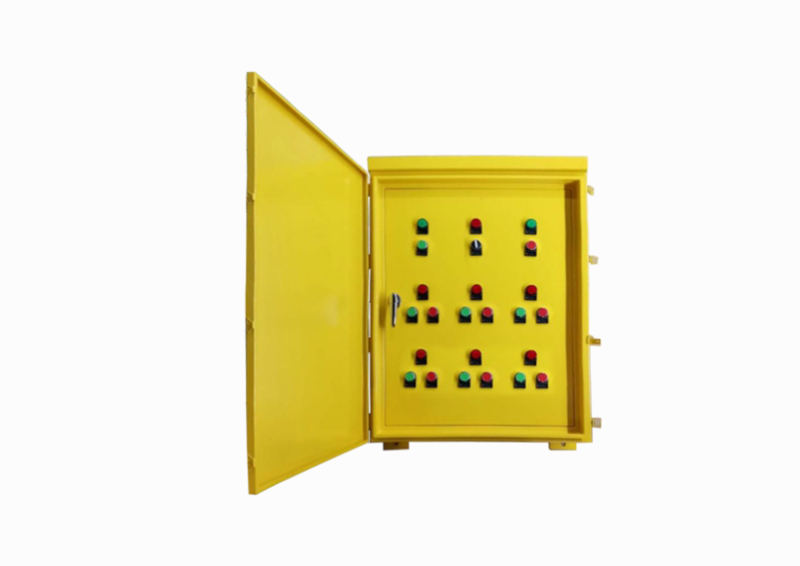

Structure Chart
