Specification:
| Item | Parameter |
| Model | CM-HT12/CU |
| Operating voltage | AC220V/6.6A |
| Power consumption | ≤5W |
| Light intensity | 25cd |
| Light source | LED |
| Light source lifespan | 100,000 hours |
| Emitting color | Green |
| Ingress protection | IP65 |
| Operating temperature | -55℃-55℃ |
| Wind load | 80 m/sec |
| Weight | 1.2kg |
| Overall dimension | ∮220*287 |
| Installation dimension | ∮166*4-M14 |
Application:

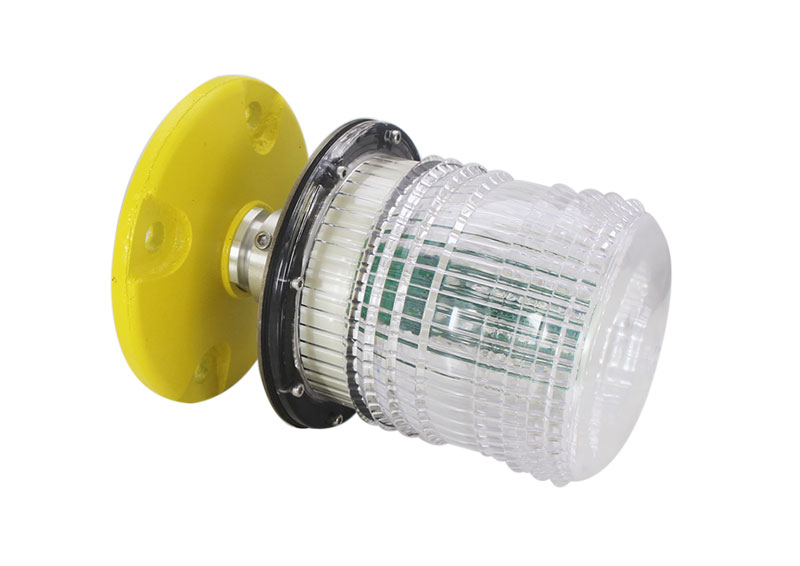

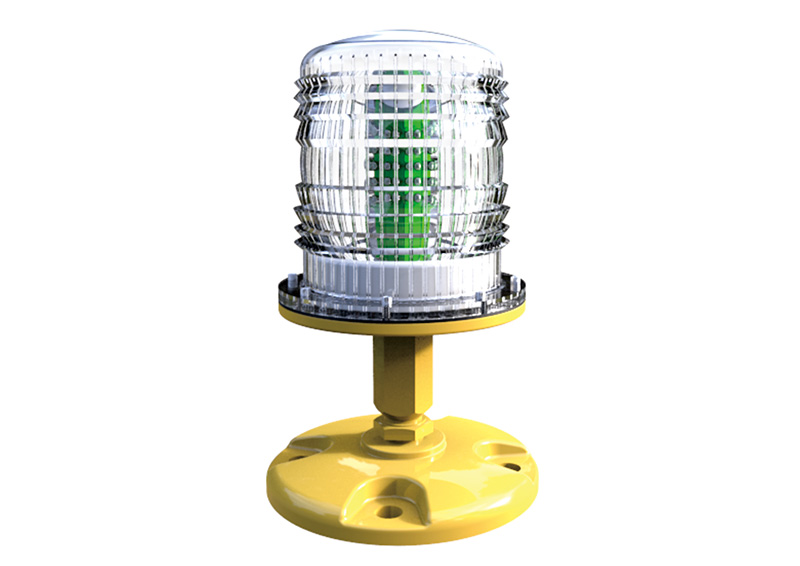

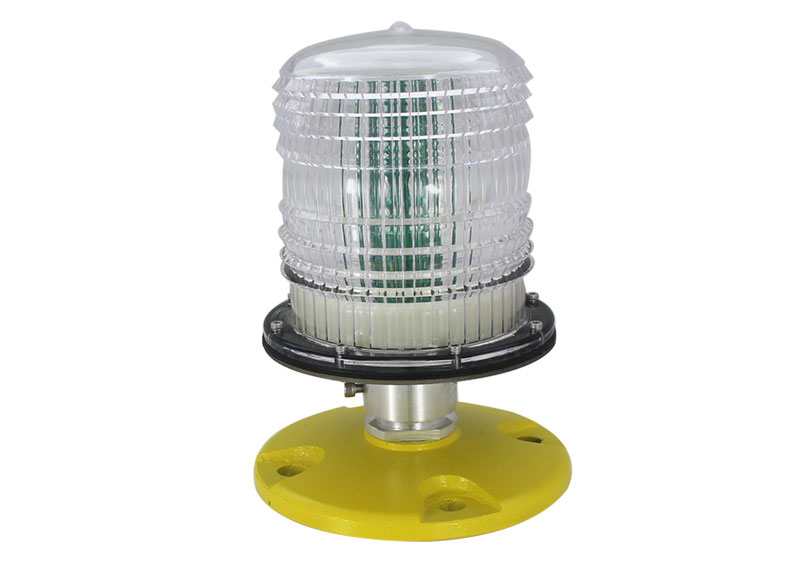

CH-HT12/CU heliport perimeter light is a constant green light upright installing light. Emitting omnidirectional green light at night or in the daytime with low visibility to indicate the perimeter of heliport take off and land area, to indicate the safe landing area for helicopter pilot. It is controlled by switch in the heliport control cabinet.
Features:
● The lamp cover adopts PC material with excellent impact resistance (IZOD notch impact strength: 90), thermal stability (service temperature can be 130℃), great transparency (available with a light transmission of up to 90%), auto-UV resistance, aging resistance and flammability rating in UL94V0.
● The house of the light adopts aluminum alloy, the product features are light weight, water tightness, seismic and corrosion resistance.
● Light source adopts the international advanced LED featuring low power consumption, high efficiency and light source lifespan reaching 100,000 hr..
● The light with surge protection device (In 7.5KA/5 times, Imax 15KA) can be used in the harsh environment.
CM-HT12-CU Helipad Elevate Perimeter Light Instruction Manual
Installation:

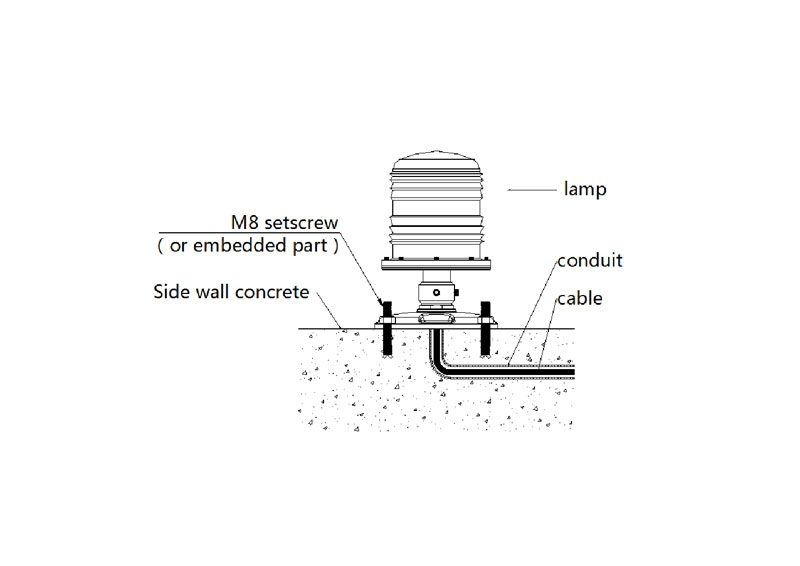

Please refer to the below picture and pre-embed pipe before install. Installation size has been marked on structure chart.

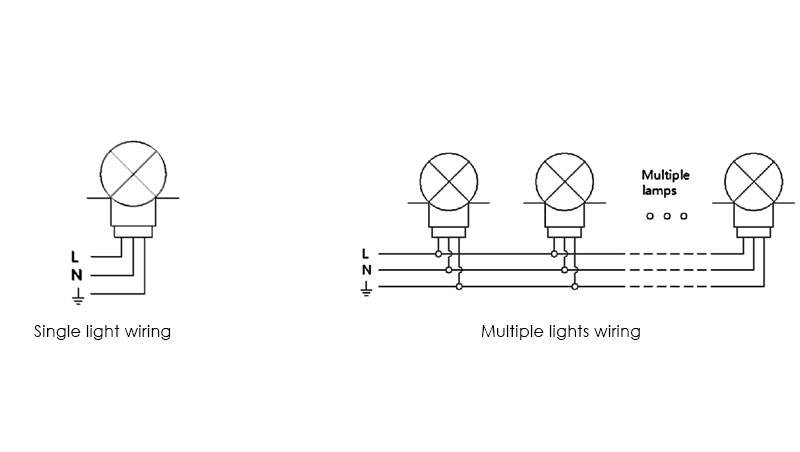

Wiring:
（1）Cable distinguish: The CM-HT12/CU helipad elevate perimeter light has a 1.2 meter long with 3 cores cable, in which the brown and black lines are power line (AC220V). The brown one is Live line (L), the black one is Null line (N), and the yellow green line is Earth line.
（2）It’s highly suggested to use at least 2.5 square millimeter cable.
Caution:
● All the connections must be correct, otherwise it will damage the lights, please check the mark and instruction carefully.
● The power supply is AC220, do not use other powers, otherwise it will damage the lights.
● It’s normal if temperature rise while operating.
● Please do not open any part of lights while operating.
● The light is fully sealed, please do not install or dismantle unless you are professional. Once operated inappropriately, our company will not guarantee the warranty.
